Item #: MZ02110502

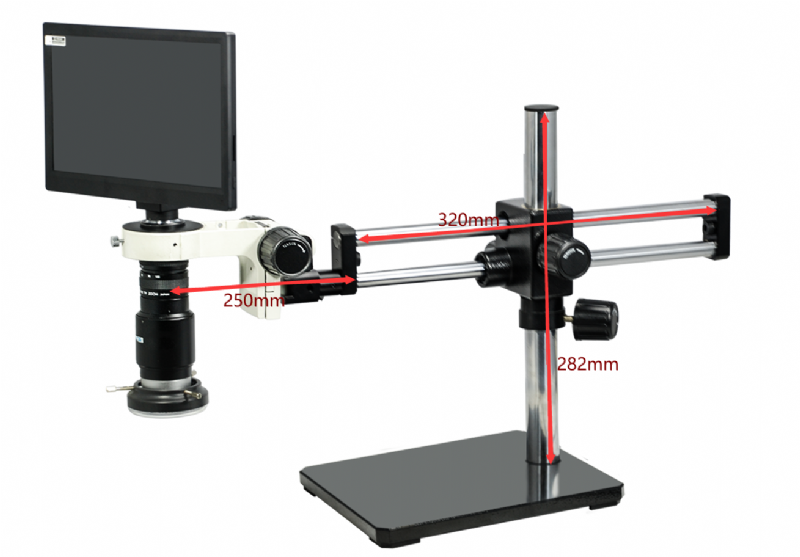

VIDEO ZOOM MICROSCOPE 1-6X LENS, DUAL ARM STAND
- VIDEO ZOOM MICROSCOPE MZ02110502 with
- ZOOM 7000 1-6X LENS
- 11.6 LCD DIISPLAY
- 2.0 MEGAPIXELS CMOS CAMERA
- LED RING LIGHT
- DUAL ARM STAND
- Dual Arm Boom Stand ST02061101
- Vertical Post Height: 384mm
- Maximum Vertical Post Extended Length: 254mm
- Vertical Post Diameter: Φ37.2mm
- Cross Adapter Type: Triple (3) Hole Adapter
- Horizontal Arm Type: Double Bar
- Horizontal Arm Length: 570mm
- Horizontal Diameter: Φ20mm
- Mounting Hole on the Top of Horizontal Arm: 16mm
- Horizontal Rotation Angle: 360° Degree Rotatable
- Horizontal Arm Travel Distance on Z-Axis: 282mm
- Horizontal Arm Stretch Range: 320mm (12.598″)
- Horizontal Arm Maximum Load: 9.50kg (20.94lbs)
- Horizontal Arm Travel Mode on Horizontal Direction: Ball Bearing
- Horizontal Arm Travel Mode on Z Direction: Manual
- Base Type: Heavy Duty Base (Rectangle 285x260x18mm)
- Net Weight : 18.06kg (39.82lbs)
- Over All Dimensions : 570x285x405mm (22.441x11.220x15.945″)
