- The 1/4-20 CMM and Equator system magnetic set can be used to hold steel, aluminum, plastic, ferrous and other non-ferrous parts.
- To build your kit, select an appropriately sized base plate for your requirements with 1/4-20 threaded holes.
- Don’t forget to ask your sales representative to add on plate clamps or mounting holes to your order to secure your plate to the CMM granite.

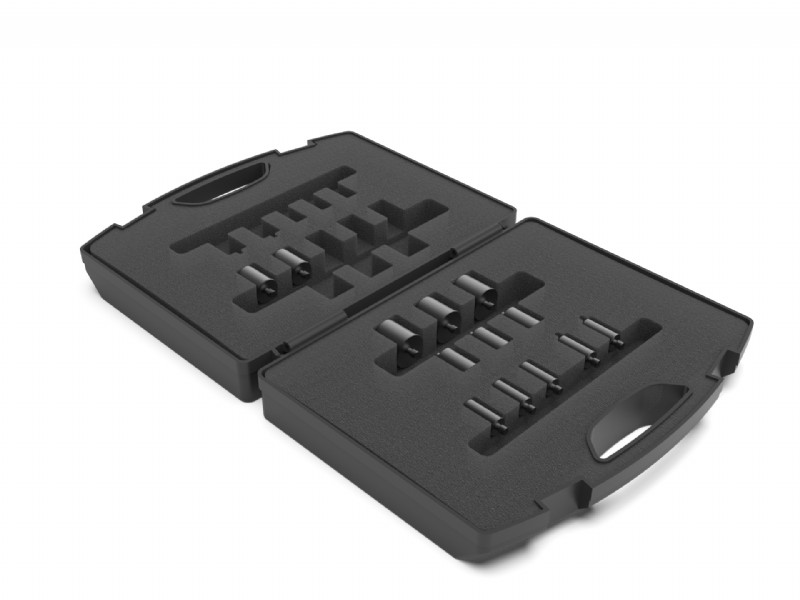

Renishaw - 1/4-20 Magnet Set - for CMM & Equator™
| Item No. | Set (see details below) | Our Price | QTY |
|---|---|---|---|
| R-M-SET-BSC-20 | Basic Set | $605.00 | |
| R-M-SET-INT-20 | Intermediate Set | $1,265.00 |
Features:
Basic Set
| Part Number | Description | Quantity |
|---|---|---|
| R-M-50-20 | Ø0.50 in × 1.00 in magnetic standoff | 3 |
| R-M-75-20 | Ø0.75 in × 1.00 in magnetic standoff | 3 |
| R-M-1-20 | Ø1.00 in × 1.00 in magnetic standoff | 3 |
| R-MP-50-20 | Ø0.50 in × 1.00 in magnetic pin standoff | 2 |
Intermediate Set
| Part Number | Description | Quantity |
|---|---|---|
| R-M-50-20 | Ø0.50 in × 1.00 in magnetic standoff | 6 |
| R-M-75-20 | Ø0.75 in × 1.00 in magnetic standoff | 6 |
| R-M-1-20 | Ø1.00 in × 1.00 in magnetic standoff | 6 |
| R-MP-50-20 | Ø0.50 in × 1.00 in magnetic pin standoff | 2 |
| R-MP-75-20 | 0.75 in dia. × 1.00 in pin magnet | 2 |
| R-MV-75-20 | 0.75 in diameter × 1.00 in V magnet | 2 |
