- The M6 CMM and Equator system magnetic and clamping kits can be used to hold steel, aluminum, plastic, ferrous and other nonferrous parts.
- To build your kit, select an appropriately sized base plate for your requirements with M6 threaded holes.
- Don’t forget to ask your sales representative to add on plate clamps or mounting holes to your order to secure your plate to the CMM granite.

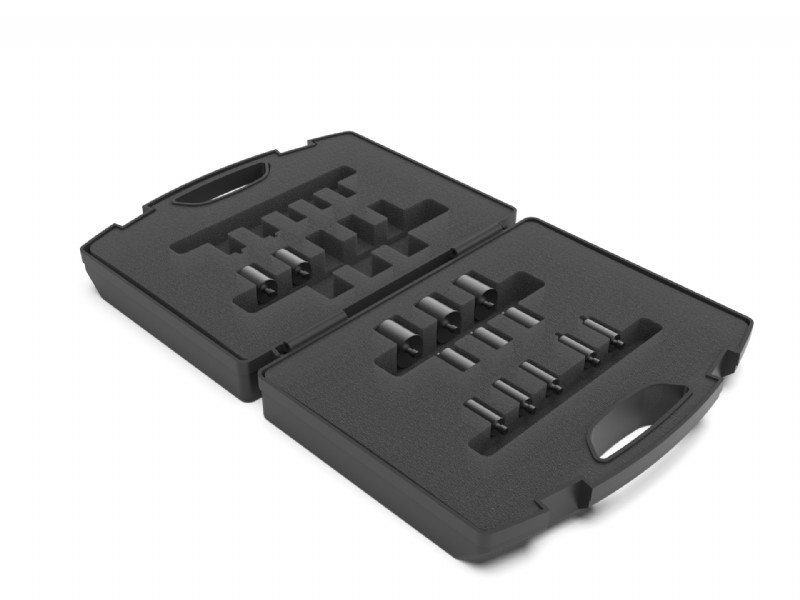

Renishaw - M6 Magnet Set - for CMM & Equator™
| Item No. | Set (see details below) | Our Price | QTY |
|---|---|---|---|
| R-M-SET-BSC-6 | Basic Set | $605.00 | |
| R-M-SET-INT-6 | Intermediate Set | $1,265.00 |
Features:
Basic Set
| Part Number | Description | Quantity |
|---|---|---|
| R-M-13-8 | Ø12.7 mm × 25.0 mm magnet | 3 |
| R-M-19-8 | Ø19.0 mm × 25.0 mm magnet | 3 |
| R-M-25-8 | Ø25.0 mm × 25.0 mm magnet | 3 |
| R-MP-13-8 | Ø12.7 mm × 25.0 mm pin magnet | 2 |
Intermediate Set
| Part Number | Description | Quantity |
|---|---|---|
| R-M-13-6 | Ø12.7 mm × 25.0 mm magnetic standoff | 6 |
| R-M-19-6 | Ø19.1 mm × 25.0 mm magnetic standoff | 6 |
| R-M-25-6 | Ø25.0 mm × 25.0 mm magnet | 6 |
| R-MP-13-6 | Ø12.7 mm × 25.0 mm pin magnet | 2 |
| R-MP-19-6 | Ø19.1 mm × 25.0 mm pin magnet | 2 |
| R-MV-19-6 | 19.1 mm diameter × 25.0 mm V magnet | 2 |
