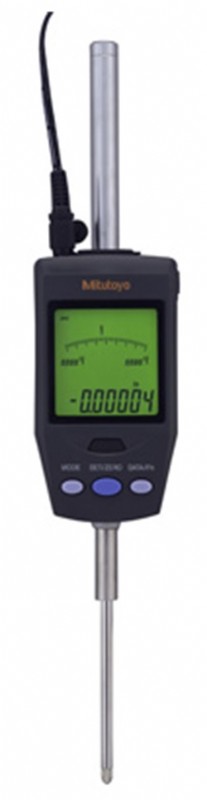

Mitutoyo - Digital Indicators - ID-H Type - High Accuracy - (Metric)

Mitutoyo - Digital Indicators - ID-H Type - High Accuracy - (Metric)

Starting at $1,040.00 $936.00

Digimatic Indicators - ID-H Type - 543 Series - High-Accuracy & High-Function Type

  • This new generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator.
  • Take advantage of its high accuracy backed by 0.5μm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the analog bar display.
  • Standard included accessories:
    • AC Adapter 120v (06AEG180JA)
    • Lifting lever (137693)
Additional Information +
Click here for INCH sizes
Item No. Range Stem / Thread MSRP Our Price QTY
543-561A 30.4mm Ø8mm / M2.5 x 0.45 $1,040.00 $936.00
543-563A 60.9mm Ø8mm / M2.5 x 0.45 $1,240.00 $1,116.00


  • The maximum, minimum, or runout value can be displayed during measurement.\
  • Go/no-go judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
  • With SPC data output.
  • With RS-232C input/outputDigital resolution and analog bar display.
  • Captures  maximum, minimum, or run out value
  • GO/±NoGo setting the upper and lower tolerances
  • Display back lighting changes from green to red
  • SPC data output.
  • RS-232C input/output
