Mitutoyo - Borematic 3-Point Digital Bore Gage - Complete Sets - (1) Display Unit per Head - 568 Series

Starting at $4,010.00 $3,609.00

Borematic - SERIES 568 — ABSOLUTE Digimatic Snap-Open Bore Gages

  • The Borematic enables the operator to take measurements more accurately and quicker than ever before.
  • Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life, therefore, no longer repeated origin setting (presetting) is necessary.
  • The Borematic enables the operator to take measurements more accurately and quicker than ever before.
  • Once the origin point is set with the ORIGIN button, the Borematic retains the setting for the entire battery life, therefore, no longer repeated origin setting (presetting) is necessary.

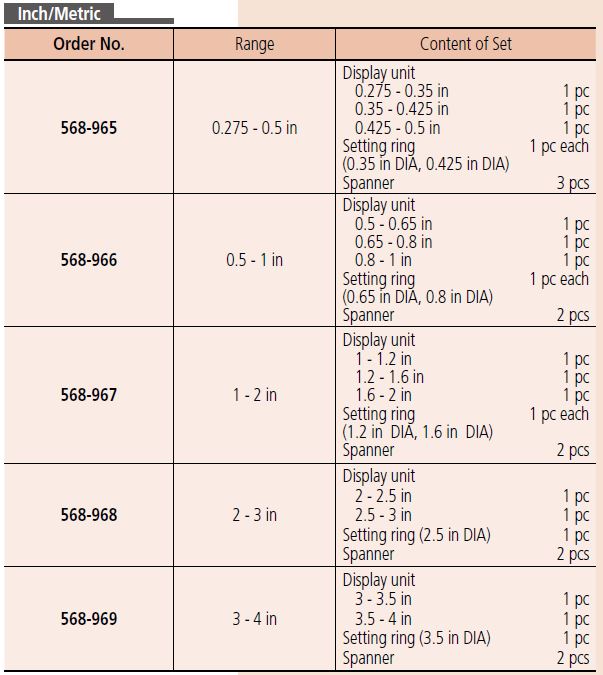

Item Set Range (see Tech Specs for details) MSRP Our Price QTY
568-965 0.275 - 0.5" $5,140.00 $4,626.00
568-966 0.5 - 1" $5,360.00 $4,824.00
568-967 1 - 2" $5,600.00 $4,368.00
568-968 2 - 3" $4,010.00 $3,609.00
567-969 3 - 4" $4,450.00 $4,005.00

Features:

  • TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to
    measure to the bottom of a blind hole.
  • Large LCD digits of 8.5mm height for easy reading.
  • 330-degree rotatable display unit for easy reading at any angle.
  • Go/no-go judgment function.
  • The ABSOLUTE linear encoder eliminates over-speed errors.
  • With SPC data output.
  • Setting rings for origin point setting are optional.
  • Measure deep holes by attaching an optional extension rod.
  • Measurement can be taken closer to the bottom of a blind bore.
  • Supplied in fitted wooden case.

Technical Specs:
