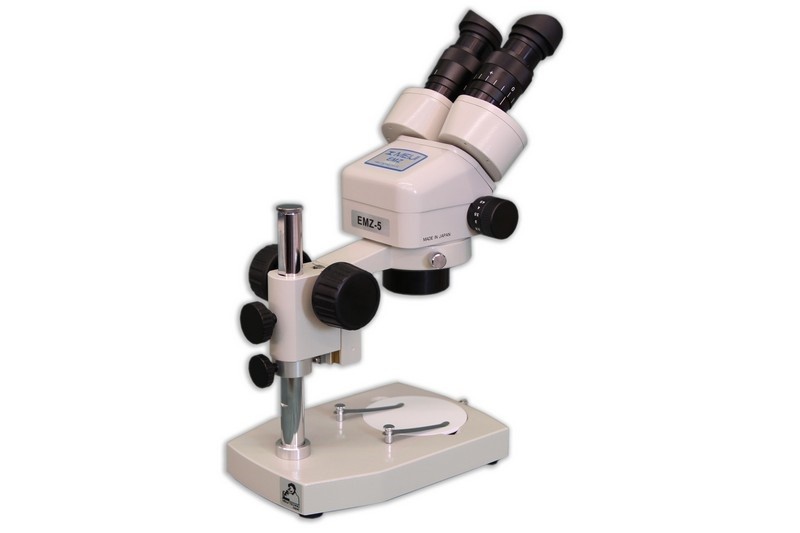

Meiji - EMZ-5 Stereo Zoom Microscope with 10X Eyepieces - 7X to 40X Zoom Range with "P" Plain Base Stand

Meiji - EMZ-5 Stereo Zoom Microscope with 10X Eyepieces - 7X to 40X Zoom Range with "P" Plain Base Stand

Starting at $2,070.00

MEJI - EMZ Series Stereo Zoom Microscopes

Zoom stereo microscope bodies are the most flexible because they offer a wider range of magnification than turret (EMT) or fixed (EMF) bodies. Much like the zoom lens on a camera, zoom objectives increase and decrease magnification progressively, causing the specimen to grow or shrink smoothly in the eyes of the viewer. Copies of our zoom microscopes are made in many countries throughout the world. However, our products hold the parfocality or focus throughout the zoom range and not all microscope brands seem to do this which is one reason why our products retain their value for many, many years.

Meiji Techno offers EM Series zoom stereo microscope bodies with a wide range of magnifications and working distances. All EM bodies come with dust covers and rubber eyeshields. Eyepieces are sold separately.

Additional Information +
Item No. Our Price QTY
EMZ-5/502/P $2,070.00

Downloads:

EMZ Manual

Technical Specs:

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
