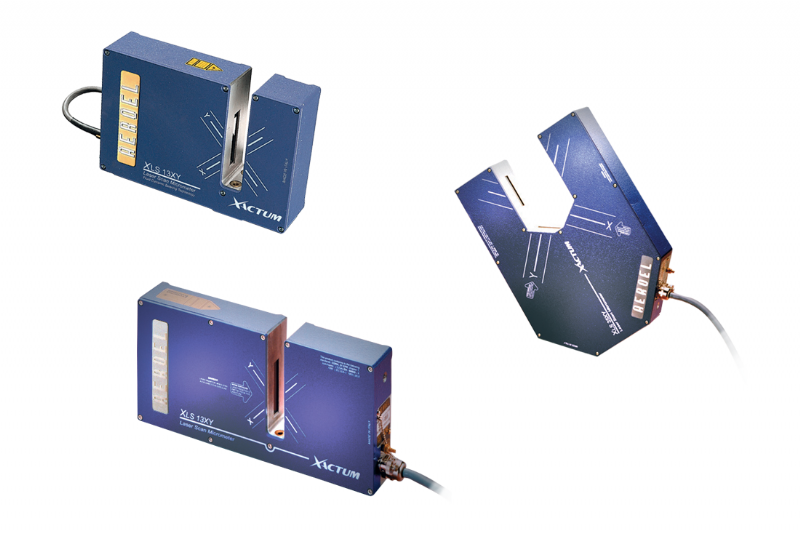

Marposs LASER Micrometers for Dual Axis Measurment - XLS13XY & XLS35XY

Ultra accurate, high speed Laser Gauges for
contact-less diameter measurement, featuring builtin electronics and Ethernet/Rs232/Rs485 interface
• Dual axis gauge
• Multiple measuring modes
• Up to 0.02 μm repeatability
• 1500 Hz scanning frequency
• Outstanding single shot repeatability
• Permanent self calibration
• Fully re-programmable
• Direct connection to PC, PLC e NC
• Motor with Fluid Dynamic Bearing Technology
• NO-VAR: active thermal compensation
• Direct connection to Internet Browser
• Capability to store different application programs
• Inputs for reading and synchronizing quadrature encoders
It’s an ideal Intelligent Diameter Sensor for
the on-line control of products like:
• Extruded tubes and profiles
• Drawn metal wires
• Medical tubes
• Electric cables and conductors
• Optical fibres
