Fowler Bowers - XTD3 Digital Holemike Sets - .080" thru 8.0" - LARGE RANGES

Starting at $2,592.97 $2,334.00
  • The Fowler Bowers BLUETOOTH XTD3 Digital Internal Micrometers have been designed to further simplify the accurate measurement of bores.
  • All XT instruments offer fixed anvils.
  • Sizes above 1"/25mm offer extended travel.
  • They are available as individual instruments or in complete sets.• Larger easy-to-read display

Bluetooth Electronic Holemike XTD3 - Large Ranges (includes head, handle and ring)

Additional Information +

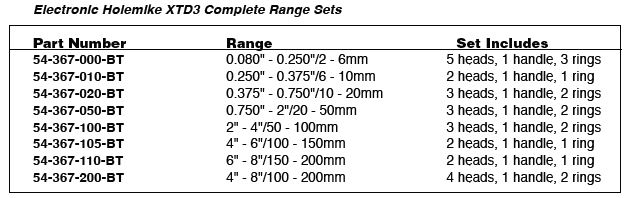

Item No. Measuring Range MSRP Our Price QTY
54-367-000-BT .080" — .250" (2 — 6mm) $6,223.18 $5,600.00
54-367-010-BT .250" — .375" (6 — 10mm) $2,592.97 $2,334.00
54-367-020-BT .375" — .750" (10 — 20mm) $3,094.20 $2,784.00
54-367-050-BT .750" — 2" (20 — 50mm) $4,202.06 $3,782.00
54-367-100-BT 2 — 4" (50 — 100mm) $4,652.32 $4,187.00
54-367-105-BT 4 — 6" (100 — 150mm) $3,927.64 $3,535.00
54-367-110-BT 6 — 8" (150 — 200mm) $5,188.21 $4,669.00
54--367-200-BT 4 — 8" (100 — 200mm) $8,197.96 $7,378.00

Features:

  • Direct inch/metric conversion
  • 4 Preset memories
  • Ratchet stop for consistent measurement
  • Resolution: .00005"/.001mm
  • Proximity and USB connectivity
  • Heads with special anvils available forthreads, splines, slots, etc.
  • Setting rings included in all sets
  • Includes UKAS certificates for micrometer,heads and setting rings
  • Special anvils available
