Fowler Bowers - XTD3 Digital Holemike Sets - .080" - 12.0" - INDIVIDUAL RANGES

Starting at $1,982.19 $1,652.00
  • The Fowler-Bowers BLUETOOTH XTD3 Digital Internal Micrometers have been designed to further simplify the accurate measurement of bores.
  • All XT instruments offer fixed anvils.
  • Sizes above 1"/25mm offer extended travel.
  • They are available as individual instruments or in complete sets.

 Bluetooth Electronic Holemike XTD3 - Individual sizes (includes head, handle and ring)

Range:
Item Range MSRP Our Price QTY
54-367-003-BT .080" - .100" (2 - 2.5mm) $2,788.96 $2,324.00
54-367-004-BT .100" - .120" (2.5 - 3mm) $2,788.96 $2,324.00
54-367-005-BT .120" - .160" (3 - 4mm) $27,889.60 $2,324.00
54-367-006-BT .160" - .200" (4 - 5mm) $2,788.96 $2,324.00
54-367-007-BT .200" - .250" (5 - 6mm) $2,788.96 $2,324.00
54-367-008-BT .250" - .312" (6 - 8mm) $1,982.19 $1,652.00
54-367-011-BT .312" - .375" (8 - 10mm) $1,982.19 $1,676.00
54-367-012-BT .375" - .500" (10 - 12.5mm) $1,982.19 $1,676.00
54-367-014-BT .500" - .625" (12.5 - 16mm) $2,032.41 $1,694.00
54-367-016-BT .625" - .750" (16 - 20mm) $2,032.41 $1,694.00
54-367-018-BT .750" - 1" (20 - 25mm) $2,401.16 $2,001.00
54-367-020-BT 1 - 1.375" (25 - 35mm) $3,094.20 $2,435.00
54-367-022-BT 1.375" - 2" (35 - 50mm) $2,830.71 $2,359.00
54-367-024-BT 2 - 2.625" (50 - 65mm) $2,898.35 $2,608.00
54-367-026-BT 2.625" - 3.250" (65 - 80mm) $2,898.35 $2,608.00
54-367-028-BT 3.250" - 4.0" (80 - 100mm) $3,048.66 $2,743.00
54-367-030-BT 4 - 5" (100 - 125mm) $3,169.07 $2,852.00
54-367-032-BT 5 - 6" (125 - 150mm) $3,267.42 $2,940.00
54-367-034-BT 6 - 7" (150 - 175mm) $3,550.31 $3,195.00
54-367-036-BT 7 - 8" (175 - 200mm) $3,765.77 $3,389.00
54-367-037-BT 8 - 9" (200-225mm) $4,525.98 $4,073.00
54-367-038-BT 9 - 10" (225 - 250mm) $4,969.07 $4,472.00
54-367-040-BT 11 - 12" (275 - 300mm) $5,607.73 $5,047.00

Features:

  • Larger easy-to-read display
  • Direct inch/metric conversion
  • 4 Preset memories
  • Ratchet stop for consistent measurement
  • Resolution: .00005"/.001mm
  • Proximity and USB connectivity
  • Heads with special anvils available for threads, splines, slots, etc.
  • Setting rings included in all sets
  • Includes UKAS certificates for micrometer, heads and setting rings
  • Special anvils available

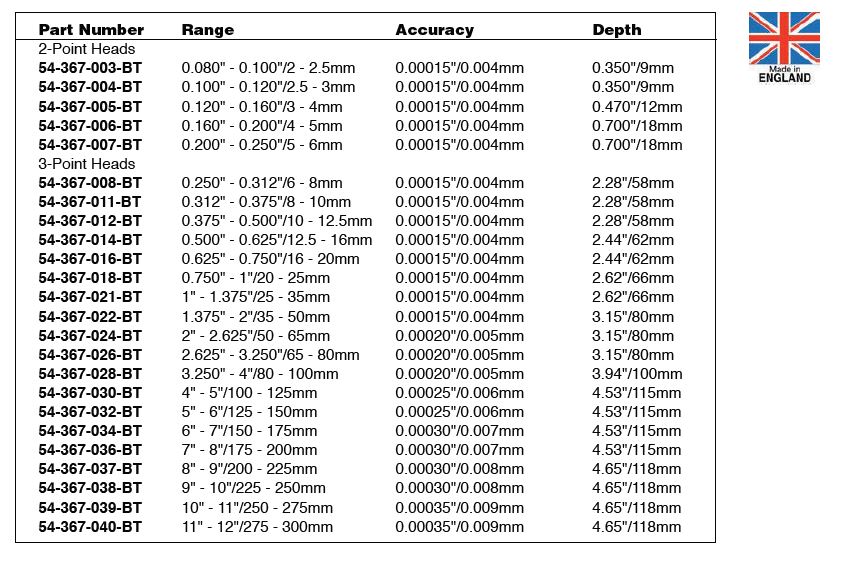

Technical Specs:
