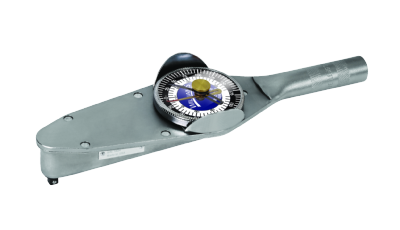

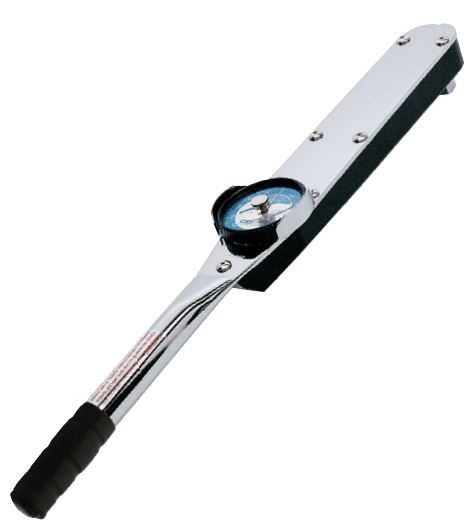

CDI Torque - Dial Torque Wrenches - Single Scale

CDI Torque - Dial Torque Wrenches - Single Scale

Contact us for a Quote
Product Details
  • Designed for manufacturing, assembly, process control in oil & gas, renewable energy, mining, heavy
  • Sturdy body construction ensures maximum durability
  • Easy to read scale
  • Large easy to read dial is shock resistant and protected by a tough metal guard
  • Memory needle retains highest torque reading applied
  • Calibrated in both CW and CCW direction
  • Accuracy: ±2% of indicated value, CW and CCW, from 20% to 100% of full scale
  • Individually serialized with matching Certificate of Calibration traceable to N.I.S.T.
Additional Information +
Item No. Range x Gradduations Remarks Our Price
301LDINSSA 0-30 lbf·in x 0.5 lbf·in 1/4 in Drive Contact us for a Quote
751LDINSS 0-75 lbf·in x 1 lbf·in 1/4 in Drive Contact us for a Quote
752LDINSS 0-300 lbf·in x 5 lbf·in 3/8 in Drive Contact us for a Quote
2502LDINSS 0-50 lbf·ft x 1 lbf·ft 3/8 in Drive Contact us for a Quote
3002LDINSS 0-100 lbf·ft x 2 lbf·ft 1/2 in Drive Contact us for a Quote
6002LDINSS 0-250 lbf·ft x 5 lbf·ft 1/2 in Drive Contact us for a Quote
502LDFNSS 0-600 lbf·ft x 10 lbf·ft 3/4 in Drive Contact us for a Quote

Downloads:

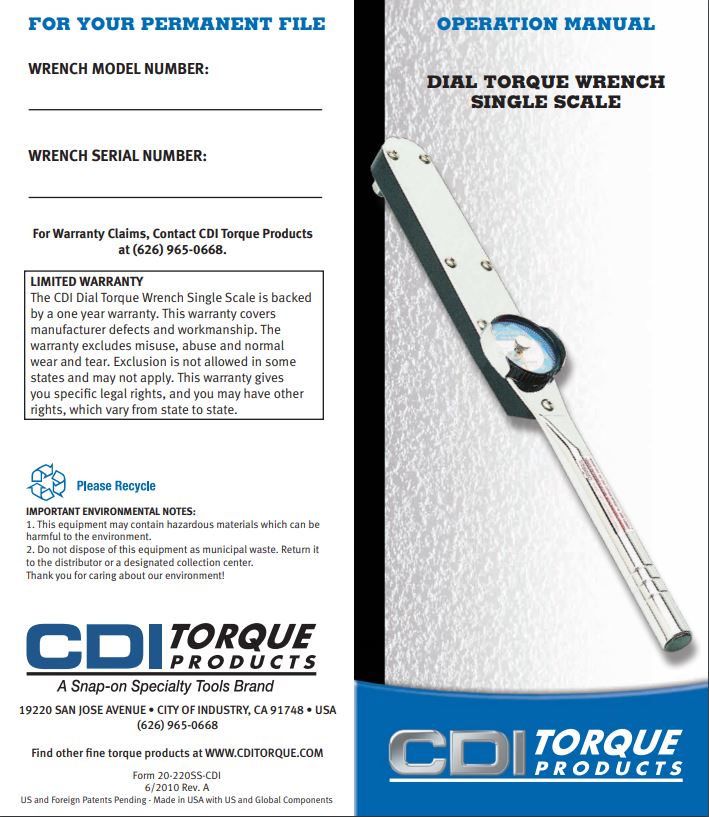

Instruction Manual

Features:

  • Sturdy body construction insures durability.
  • Easy to read laser marked dual scale.
  • Large easy to read dial is shock resistant and protected by a tough metal guard.
  • Memory needle retains highest torque reading applied.
  • Calibrated with both CW and CCW direction.
  • Accuracy ±4% of indicated value, CW & CCW from 20% to 100% of full scale.
  • Individually serialized with matching certificate of calibration traceable to N.I.S.T.
