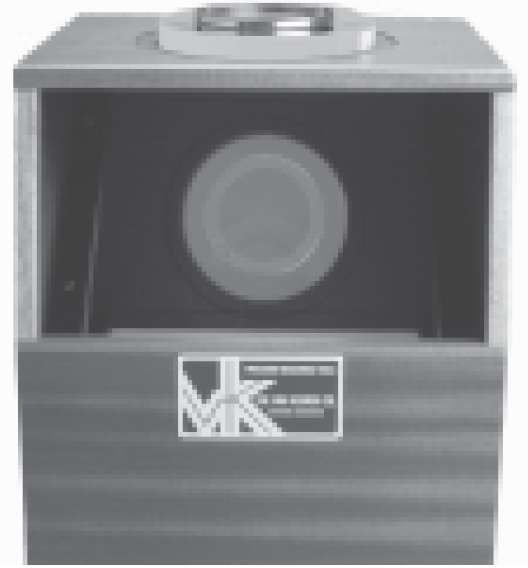

Van Keuren - Monochromatic Reflex Interference Viewer

Starting at $1,920.00

U-Series Lights

  • For rapid production inspection with maximum precision on polished or lapped work.
  • In the Van Keuren Reflex Viewer, the optical flat is secured above the light in a fixed cell; the work is placed on top of the flat and bands noted.
  • Keeping the work on top of the flat avoids serious distortion due to the weight of the flat when the work is small or delicate.
  • Work larger than the flat can be inverted and moved across the flat for two or more observations.
  • Handling of the optical flat is entirely eliminated and risk of accidental damage or excessive wear is greatly diminished
Additional Information +
Item No. Description Our Price QTY
V760300 V760300 U-6 (Requires 6" Flat) $1,920.00

Features:

Series Description

Width

Height

Depth

Weight

V760300 U-6 Monochromatic Reflex Interference Viewer

(For Use With 6" Flat)

10-1/2"

17"

14"

19 lbs.

V760302 U-12 Monochromatic Reflex Interference Viewer

(For Use With 12" Flat)

24"

48"

24"

46 lbs.

V760303 U-14 Monochromatic Reflex Interference Viewer

(For Use With 14" Flat)

30"

48"

31"

80 lbs.
