- Torque wrench for single purpose bolt tightening.
- Preset style.
- The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
- A clear "click" sound signals tightening completion upon reaching the set torque.
- The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.
- Applicable for international use including the EU region.
- Compliant with ISO 6789 Type II Class B calibration procedures.
Tohnichi - QSP "Click" Type Torque Wrench - (PRESET)
Filter Products:
Range:
Preset Torque Value (entered in CART):
| Item No. | Range | Preset Torque Value (entered in CART) | MSRP | Our Price | QTY |
|---|---|---|---|---|---|
| QSP1.5N4 | 4-10 in.lbs / .3-.8 ft lbs | No | $144.00 | $137.00 | |
| QSP1.5N4 | 4-10 in.lbs / .3-.8 ft lbs | Yes - w/ NIST Certification | $194.00 | $187.00 | |
| QSP3N4 | 10-30 in.lbs / .8-2.5 ft lbs | Yes - w/ NIST Certification | $194.00 | $187.00 | |
| QSP3N4 | 10-30 in.lbs / .8-2.5 ft lbs | No | $144.00 | $137.00 | |
| QSP6N4 | 20-50 in.lbs / 1.6-4 ft lbs | No | $144.00 | $137.00 | |
| QSP6N4 | 20-50 in.lbs / 1.6-4 ft lbs | Yes - w/ NIST Certification | $194.00 | $187.00 | |
| QSP12N4 | 40-100 in. lbs / 3-8 ft lbs | Yes - w/ NIST Certification | $194.00 | $187.00 | |
| QSP12N4 | 40-100 in. lbs / 3-8 ft lbs | No | $144.00 | $137.00 | |
| QSP50N3 | 100-400 in.lbs / 8-34 ft lbs | No | $147.00 | $140.00 | |
| QSP50N3 | 100-400 in.lbs / 8-34 ft lbs | Yes - w/ NIST Certification | $197.00 | $190.00 | |
| QSP100N4 | 100-750 in.lbs / 8-65 ft lbs 1/2" Dr | No | $166.00 | $158.00 | |
| QSP100N4 | 100-750 in.lbs / 8-65 ft lbs 1/2" Dr | Yes - w/ NIST Certification | $216.00 | $208.00 | |
| QSP140N3 | 200-1200 in lbs / 30-100 ft lbs | No | $186.00 | $177.00 | |
| QSP140N3 | 200-1200 in lbs / 30-100 ft lbs | Yes - w/ NIST Certification | $236.00 | $227.00 | |
| QSP280N3 | 300-1600 1 ft.lbs / 30-150 ft lbs | Yes - w/ NIST Certification | $328.00 | $314.00 | |
| QSP280N3 | 300-1600 1 ft.lbs / 30-150 ft lbs | No | $278.00 | $264.00 | |
| QSP420N | 400-3000 in lbs / 30-250 ft.lbs | No | $431.00 | $409.00 | |
| QSP420N | 400-3000 in lbs / 30-250 ft.lbs | Yes - w/ NIST Certification | $481.00 | $459.00 |
Downloads:
Features:
A click-type torque wrench is a specialized tool designed to tighten bolts and nuts with precise torque specifications. Here’s how it works:
-
Mechanism: A click-type torque wrench has a built-in mechanism that produces an audible click sound when a specific amount of torque is achieved. This feature allows the user to apply just enough force to tighten the bolt or nut without over-tightening and causing damage1.
-
Precision: Imagine trying to tighten a bolt with a regular wrench or pliers, where you’d need to estimate the force needed. It’s like solving a puzzle with mismatched pieces. Click-type torque wrenches make the process fast and accurate, like solving a puzzle with the right tools and pieces1.
-
Adjustability: Click-type torque wrenches are ratcheting adjustable tools. You can adjust the applied force within a given range. The housing typically displays the force in either inch-pounds (in-lbs), foot-pounds (ft-lbs), or Newton Meters (Nm) for metric torque settings2.

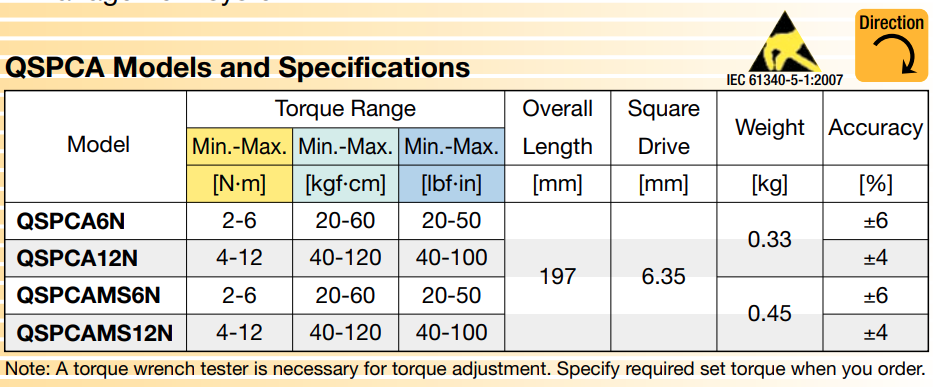

Technical Specs:
