Item #: MTL-110

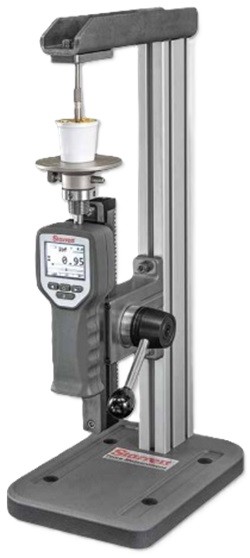

Starrett - MTL-110 Manual Force Test Stand - MTL-110

Manufacturer: Starrett

Optional Items: Legs for Horizontal Testing
List: $717.00 starting at $644.00 You save $73.00 (10%)

Starrett - MTL-110 Manual Force Test Stand - MTL-110

  • The MTL-110 can measure force up to 110lbf (500N, 50kgf).
  • This tester is ideal for component testing and its compact design fits small work spaces.
  • The MTL-110 has a 6" (152mm) stroke.
  • The tester's quick-action lever moves the rack and pinion crosshead 3" (76mm) per revolution.
  • The lever may be positioned anywhere along the 20" (508mm) column, and with a 6" (152mm) throat, large samples can be accurately tested.
  • Options include a digital scale for measuring deflection distance.
  • The base adapter adjusts to accommodate different gage models.
  • Force Gage and accessories sold separately

Features:

  • 110lbf (500N) Capacity
  • Compact Design is Ideal for Lean Manufacturing Environments
  • Lever-type,Quick-action Crosshead Movement
  • Precision Rack and Pinion
  • Excellent Position Resolution: Single Rotation for 3" (75mm)
  • Adjustable Gage Mounting

Specifications:

  • Capacity: 110lbf, 500N, 50kg
  • Crosshead Travel: 6in, 152mm
  • Height: 22.75in, 577.9mm
  • Depth: 11in, 279.4mm
  • Width: 8in, 203.2mm
  • Throat Distance: 4in, 102mm

MTL-110 Manual Stand Brochure
