- These gages directly measure the diameter of chamfered holes. No setting master is necessary.
- When the three-blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator. In case of wear, the gage may be adjusted to read the proper number.
- All ground surfaces are of hardened tool steel. Indicators are AGD design.
- Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face of the gage.
- External gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage.
- External gages are available as a special order product.

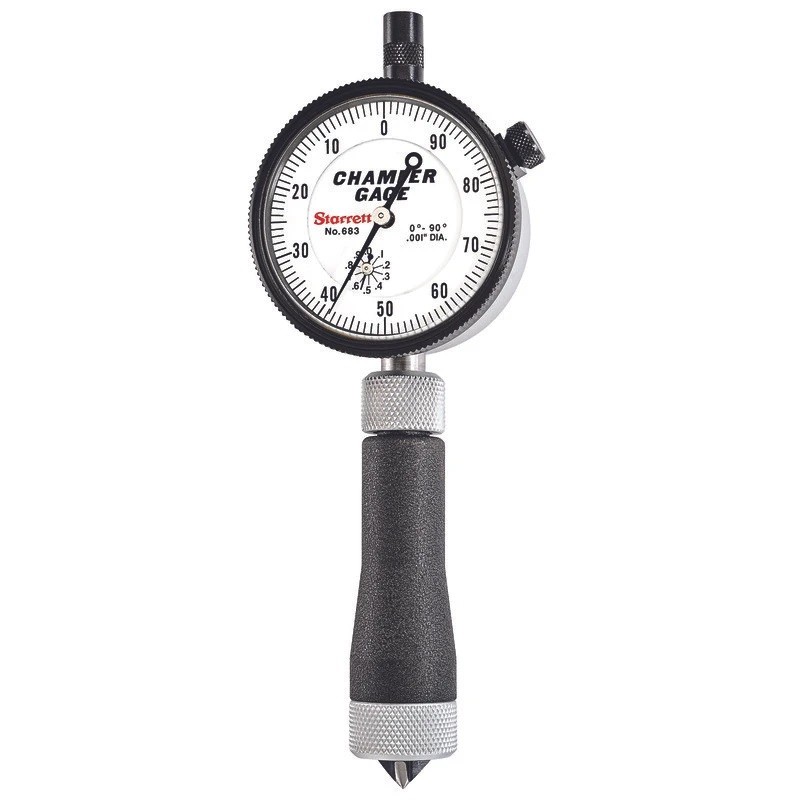

Starrett - Chamfer Gages - For Internal Measurement
| Item No. | Range | Angle Type | Our Price | QTY |
|---|---|---|---|---|
| 683-1Z | 0 - 3/8" | 0 - 90° Angle | $688.00 | |
| 684-1Z | 0 - 3/8" | 90 - 127° Angle | $731.00 | |
| 683-2Z | 0 - 1/2" | 0 - 90° Angle | $596.00 | |
| 684-2Z | 0 - 1/2" | 90 - 127° Angle | $640.00 | |
| 683-3Z | 0 - 1" | 0 - 90° Angle | $542.00 | |
| 684-3Z | 0 - 1" | 90 - 127° Angle | $632.00 | |
| 683-4Z | 1 - 2" | 0 - 90° Angle | $829.00 | |
| 684-4Z | 1 - 2" | 90 - 127° Angle | $895.00 |
Features:
