This tension clamp has a rubber-coated tip to hold components without marking their surfaces. It is recommended for use on CMMs, the Equator™ gauging system, and vision and multi-sensor machines.
Renishaw - Soft Tip Tension Clamps
Filter Products:
Thread Size:

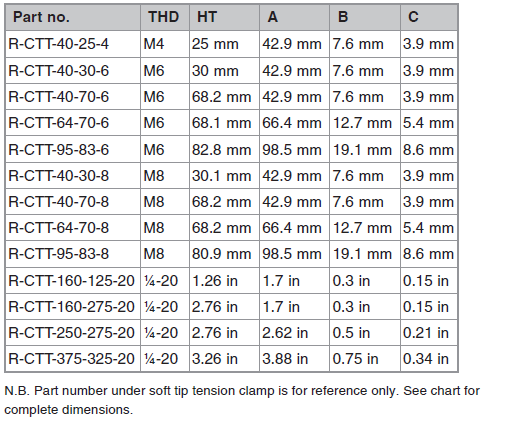

| Item No. | Thread Size | Clamp Size | Our Price | QTY |
|---|---|---|---|---|
| R-CTT-40-25-4 | M4 | 40mm Soft Tip Tension Clamp w/ 25mm Post | $26.25 | |
| R-CTT-40-30-6 | M6 | 40mm Soft Tip Tension Clamp w/ 30mm Post | $29.25 | |
| R-CTT-40-70-6 | M6 | 40mm Soft Tip Tension Clamp w/ 68mm Post | $30.50 | |
| R-CTT-64-70-6 | M6 | 64 mm Soft Tip Tension Clamp w/ 68mm Post | $33.00 | |
| R-CTT-95-83-6 | M6 | 95 mm Soft Tip Tension Clamp w/ 83mm Post | $51.50 | |
| R-CTT-40-30-8 | M8 | 40mm Soft Tip Tension Clamp w/ 30mm Post | $29.25 | |
| R-CTT-40-70-8 | M8 | 40mm Soft Tip Tension Clamp w/ 68mm Post | $33.00 | |
| R-CTT-64-70-8 | M8 | 64 mm Soft Tip Tension Clamp w/ 68mm Post | $33.50 | |
| R-CTT-95-83-8 | M8 | 95 mm Soft Tip Tension Clamp w/ 83mm Post | $51.50 | |
| R-CTT-160-125-20 | 1/4 - 20 | 1.58" Soft Tip Tension Clamp w/ 1.25" Post | $29.00 | |
| R-CTT-160-275-20 | 1/4 - 20 | 1.58" Soft Tip Tension Clamp w/ 2.75" Post | $30.00 | |
| R-CTT-250-275-20 | 1/4 - 20 | 2.50" Soft Tip Tension Clamp w/ 2.75" Post | $31.50 | |
| R-CTT-375-325-20 | 1/4 - 20 | 3.75" Soft Tip Tension Clamp w/ 3.25" Post | $51.75 |
Downloads:
Technical Drawing
Features:
