- The 1/4-20 CMM and Equator system clamping component set can be used to hold aluminum, plastic, brass, titanium and other nonferrous parts.
- To build your kit, select an appropriately sized base plate for your requirements with 1/4-20 threaded holes.
- Don’t forget to ask your sales representative to add on plate clamps or mounting holes to your order to secure your plate to the CMM granite.

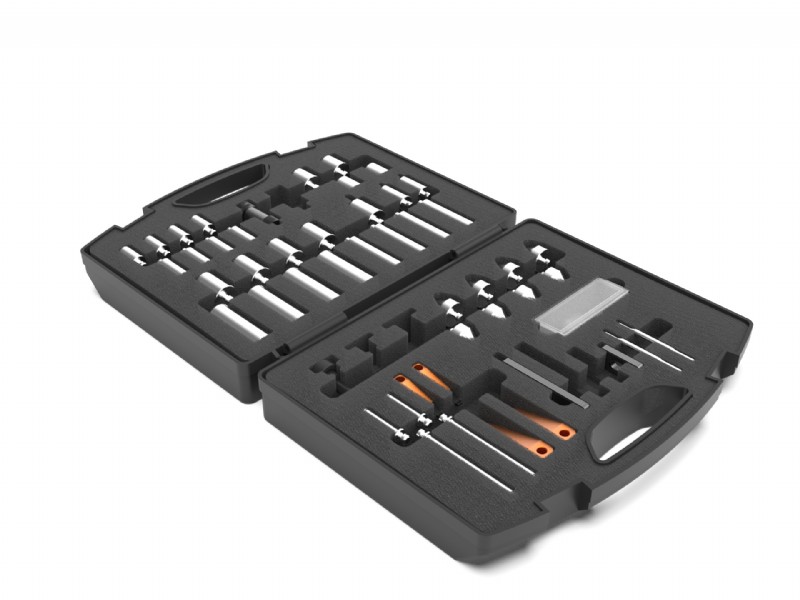

Renishaw - 1/4-20 Clamping Kits - for CMM & Equator™
| Item No. | Set (see details below) | Remarks | Our Price | QTY |
|---|---|---|---|---|
| R-C-SET-BSC-20 | Basic Set (42 components) | Old p/n: R-FSC-CA-20 | $935.00 | |
| R-C-SET-INT-20 | Intermediate Set (109 components) | Old p/n: R-FSC-CB-20 | $2,530.00 | |
| R-C-SET-PRO-20 | Professional Set (161 components) | Old p/n: R-FSC-CC-20 | $4,290.00 |
Features:
Basic Set
| Part Number | Description | Quantity |
|---|---|---|
| R-S-5075-20 | Ø0.50 in × 0.75 in standoff | 4 |
| R-S-501-20 | Ø0.50 in × 1.00 in standoff | 4 |
| R-S-502-20 | Ø0.50 in × 2.00 in standoff | 4 |
| R-S-7575-20 | Ø0.75 in × 0.75 in standoff | 4 |
| R-S-751-20 | Ø0.75 in × 1.00 in standoff | 4 |
| R-S-752-20 | Ø0.75 in × 2.00 in standoff | 4 |
| R-SP-501-20 | 0.50 in dia. × 1.00 in pin standoff | 2 |
| R-CT-250-275-20 | 2.26 in tension clamp with 2.76 in post | 2 |
| R-CTT-160-125-20 | 1.43 in tension clamp with 1.26 in post | 2 |
| R-RCS-75-20 | Steel resting cone | 4 |
| R-RCD-75-20 | POM resting cone | 4 |
| R-AJ-50-20 | Ø0.63 in adjustable aluminium jack stand | 1 |
| R-AS-1-20 | 1.38 in long adjustable slide | 1 |
| R-AS-3-20 | 3.0 in long adjustable slide | 1 |
| R-CSPS-751-20 | 0.75 in diameter × 1.00 in spring pusher standoff clamp | 1 |
| R-TT | Fixturing assembly tool | 2 |
Intermediate Set
| Part Number | Description | Quantity |
|---|---|---|
| R-S-5050-20 | Ø0.50 in × 0.50 in standoff | 6 |
| R-S-5075-20 | Ø0.50 in × 0.75 in standoff | 6 |
| R-S-502-20 | Ø0.50 in × 2.00 in standoff | 6 |
| R-S-501-20 | Ø0.50 in × 1.00 in standoff | 6 |
| R-S-7550-20 | Ø0.75 in × 0.50 in standoff | 3 |
| R-S-7575-20 | Ø0.75 in × 0.75 in standoff | 9 |
| R-S-751-20 | Ø0.75 in × 1.00 in standoff | 9 |
| R-S-752-20 | Ø0.75 in × 2.00 in standoff | 9 |
| R-S-754-20 | Ø0.75 in × 4.00 in standoff | 3 |
| R-S-11-20 | 1.0 in dia. × 1.0 in standoff | 3 |
| R-S-12-20 | Ø1.00 in × 2.00 in standoff | 3 |
| R-S-14-20 | Ø1.00 in × 4.00 in standoff | 3 |
| R-SP-501-20 | 0.50 in dia. × 1.00 in pin standoff | 4 |
| R-CT-160-125-20 | 1.43 in tension clamp with 1.26 in post | 4 |
| R-CT-250-275-20 | 2.26 in tension clamp with 2.76 in post | 4 |
| R-CTT-160-125-20 | 1.43 in tension clamp with 1.26 in post | 2 |
| R-CTT-250-275-20 | 2.26 in tension clamp with rubber coated tip with 2.76 in post | 4 |
| R-RCS-75-20 | Steel resting cone | 4 |
| R-RCD-75-20 | POM resting cone | 4 |
| R-RPS-20 | Steel resting pin | 4 |
| R-AJ-50-20 | Ø0.63 in adjustable aluminium jack stand | 2 |
| R-AJ-1-20 | Ø1.00 in adjustable jackstand | 2 |
| R-AS-1-20 | 1.38 in long adjustable slide | 2 |
| R-AS-3-20 | 3.0 in long adjustable slide | 2 |
| R-CSPS-751-20 | 0.75 in diameter × 1.00 in spring pusher standoff clamp | 1 |
| R-TT | Fixturing assembly tool | 2 |
Professional Set
| Part Number | Description | Quantity |
|---|---|---|
| R-S-2550-20 | 0.25 in diameter × 0.50 in standoff | 4 |
| R-S-251-20 | 0.25 in diameter × 1.00 in standoff | 4 |
| R-S-5050-20 | Ø0.50 in × 0.50 in standoff | 10 |
| R-S-5075-20 | Ø0.50 in × 0.75 in standoff | 12 |
| R-S-501-20 | Ø0.50 in × 1.00 in standoff | 8 |
| R-S-502-20 | Ø0.50 in × 2.00 in standoff | 8 |
| R-S-7550-20 | Ø0.75 in × 0.50 in standoff | 4 |
| R-S-7575-20 | Ø0.75 in × 0.75 in standoff | 12 |
| R-S-751-20 | Ø0.75 in × 1.00 in standoff | 12 |
| R-S-752-20 | Ø0.75 in × 2.00 in standoff | 12 |
| R-S-754-20 | Ø0.75 in × 4.00 in standoff | 10 |
| R-S-11-20 | 1.0 in dia. × 1.0 in standoff | 4 |
| R-S-12-20 | Ø1.00 in × 2.00 in standoff | 4 |
| R-S-14-20 | Ø1.00 in × 4.00 in standoff | 4 |
| R-SP-501-20 | 0.50 in dia. × 1.00 in pin standoff | 4 |
| R-SP-751-20 | 0.75 in dia. × 1.00 in pin standoff | 2 |
| R-CT-160-125-20 | 1.43 in tension clamp with 1.26 in post | 4 |
| R-CT-250-275-20 | 2.26 in tension clamp with 2.76 in post | 6 |
| R-CTT-160-125-20 | 1.43 in tension clamp with 1.26 in post | 2 |
| R-CTT-250-275-20 | 2.26 in tension clamp with rubber coated tip with 2.76 in post | 4 |
| R-CT-375-325-20 | 3.45 in tension clamp with 3.26 in post | 3 |
| R-RCS-75-20 | Steel resting cone | 6 |
| R-RCD-75-20 | POM resting cone | 6 |
| R-RPS-20 | Steel resting pin | 6 |
| R-WS-37550-20 | 0.57 in diameter wedge stop | 3 |
| R-APJ-20 | Adjustable pivot joint | 1 |
| R-AJ-50-20 | Ø0.63 in adjustable aluminium jack stand | 4 |
| R-AJ-1-20 | Ø1.00 in adjustable jackstand | 3 |
| R-AS-1-20 | 1.38 in long adjustable slide | 3 |
| R-AS-3-20 | 3.0 in long adjustable slide | 4 |
| R-CSPS-751-20 | 0.75 in diameter × 1.00 in spring pusher standoff clamp | 2 |
| R-AVP-11-20 | 1.00 in diameter × 1.00 in adjustable V post | 2 |
| R-TT | Fixturing assembly tool | 2 |
