*Limited Quantities Available while Supplies Last*
Gages Made to ANSI/ASME B1.20.1 1983
- Comes with Certification Traceable to NIST

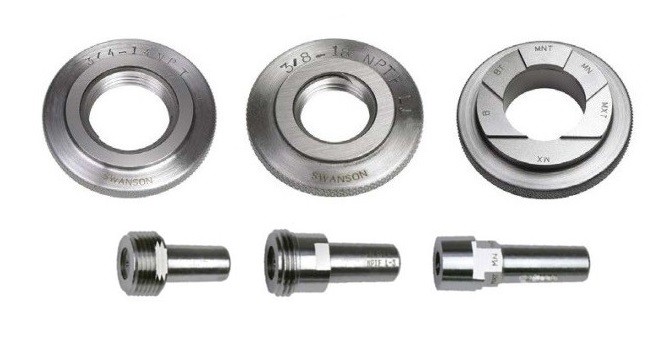

- Gaging of NPT threads is quite easy and differs from straight threads in that only one gage, an L1 plug or L1 ring is used to determine acceptability.
- The taper pipe thread plug has a step at the L1 distance from its small end.
- When turned hand tight into the products internal pipe thread, (do not force the gage), the step is required to be flush with the large end of the product thread within a tolerance of plus or minus one turn.
- Special Note: Many times the product thread is chamfered, countersunk or recessed, exceeding the major diameter of the thread.
- In these instances, the gaging point of the product thread becomes where the first visible sign of a scratch mark at the major diameter occurs on the chamfer cone.
- Click HERE for Pitch Diameter Chart
