ONO SOKKI- 8" x 12" x 2" Gage Stand - w/Granite Base, 12" Post & 5" Throat Depth - S-2100

Manufacturer: Ono Sokki
Item Number: S-2100

Optional Items: Optional Posts
starting at $415.00

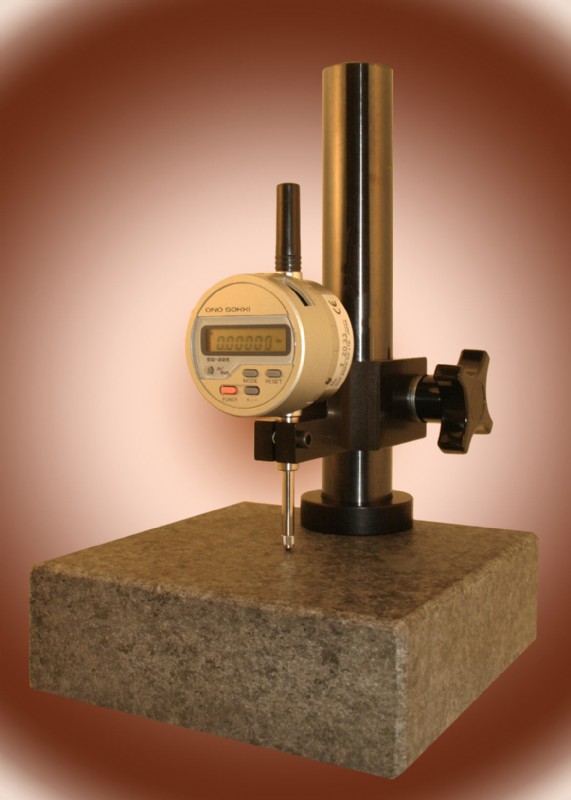

ONO SOKKI- 8" x 12" x 2" Gage Stand - w/Granite Base, 12" Post & 5" Throat Depth - S-2100

  • 8" x 12" x 2" (200mm x 300mm x 50mm) Granite base gage stand with smooth, hard and accurate work surface.
  • Sturdy industrial design.
  • Great econmical replacement for the ST-022, larger ST-044 stands.

Features:

  • Highest Quality Black Granite
  • Stand Maintenance free
  • Gauge arm throat depth of 1.75" (45mm) standard Or go with an optional
  • Gauge arms throat depth of 5" (127mm) please specify when requesting a quote and/or ordering.
  • Support arm quickly adjustable x, y, z positions with rotation lock
  • Accepts all gages with 3/8" stems standard, optional lugback arm available
  • With options; can adapt to 8mm using (AA-894 bushing), and 15mm gage stems with arm option (please inquire)
  • Optional : 8" and 18" tall post available
  • Laboratory grade A, 0.0001" flatness
  • Total weight approx. 30 lbs.

Specifications:
