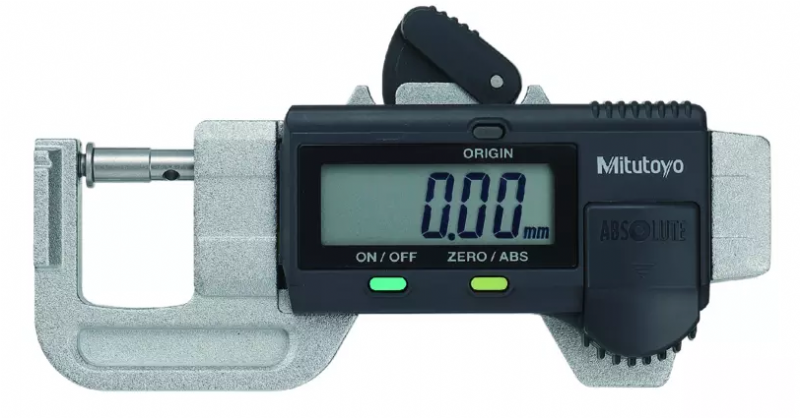

Mitutoyo - Quick-Mini - .0005" Res. Thickness Gage - 0 - .5" Range - 700-118-30

Starting at $186.00 $167.00
  • Measurement of small workpieces: Pearl, jewel, engine tappet shim, screws.
  • Measurement of thin workpieces: Printing paper, polyethylene bags, sheet material, noodles and other food products, medium substrate, foil, thin plate, filter cloth and other medical supplies.
  • Measurement of thin lines and bars: Fishing line, dental reamers, spaghetti, drill for PCBs, wiring
Additional Information +
Click here for METRIC sizes
Item No. Range MSRP Our Price QTY
700-118-30 0 - .5" $186.00 $167.00


  •  Lightweight, compact, palm-sized device.
  • Measurement of small, thin workpieces is possible by only a single operation.
  • Electromagnetic induction type ABSOLUTE encoder is adopted.
  • Built-in ABS (absolute) scale requires no zero-set every time the power is turned on. In addition, reliability has improved by eliminating overspeed errors.
  • 18,000 hours of continuous operation is achieved thanks to adoption of the absolute scale.
  • A compact comparator designed for carrying convenience
  • The digital display provides error-free reading with 0.01mm / .0005” resolution.
  • Measuring force less than 2N.
  • Supplied in fitted plastic case.

Technical Specs:

  • Accuracy:  ±.001"
  • Resolution: 0.01mm or .0005"/0.01mm
  • Range: 0-.5" / 0-12.7mm Range
  • Display: LCD
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 2 years under normal use
  • Function: Zero-setting, Data hold, Power ON/OFF, inch/mm conversion (inch/mm models)
