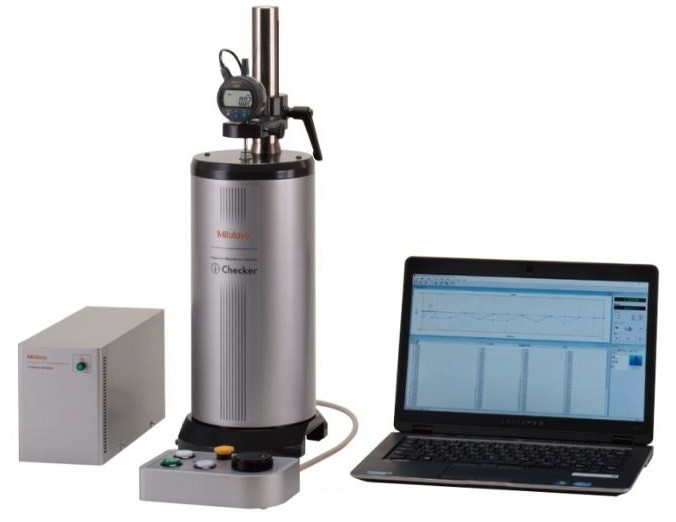

The i-Checker is specially designed to calibrate dial indicators, dial test indicators, and other electronic comparison gage heads with a stroke of up to 100mm (4").
- with 3/8" and 8mm stem adapters.

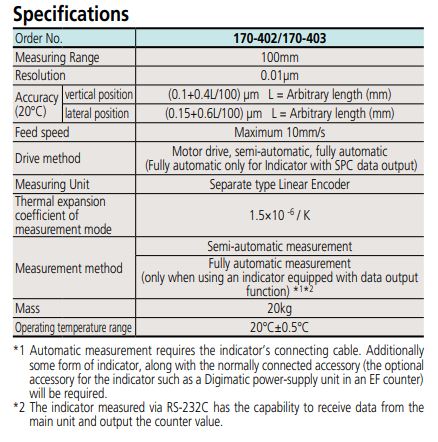

- ±(0.1+0.4L/100) µm indication accuracy.
- Directly inspects an indicator with a stroke of up to 100mm (4").

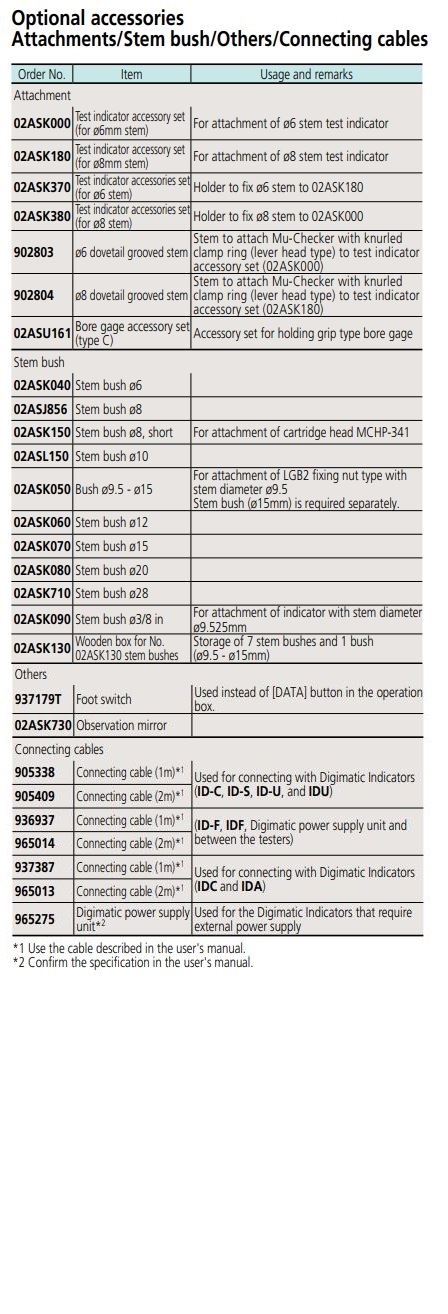

- The dial test indicator, bore gage and lever-type inductive head can be inspected with optional accessories.
Using test indicator attachment set (02ASK000). - Adjustment of the measurement position is easily accomplished due to semi-automatic measurement and fully automatic measurement functions.
- Creates and prints out a simple inspection certificate.
- Saves inspection results as a CSV file for analysis by software.
