- Palm-sized printer used to print measurement data from the Digimatic gage & perform statistical analysis.
- The DP-1VA collects data from a Digimatic gage, which can be stored, exported to software or printed.
- A new USB connection allows collected data to be easily transferred from the DP-1VA to a PC.
- The output is HID or VCP so data can be sent directly to Excel or data collection software such as IT-Pak or MeasurLink.
- Digimatic 2 function allows the measurement data of high resolution gages to be output in their entirety in metric or inch.
- A gage with SPC output is connected to the DP-1VA with an SPC cable.
- The data for each part measured is printed or sent directly to a PC through a USB cable.
- This data can be triggered by the button on the gage, cable or the DP-1VA. The footswitch can also be used.
- Data can be stored internally, printed and/or sent to a PC as it is measured or after all data has been collected
- Up to 1,000 measurements can be stored.
- Data collection can be triggered by a timer function
- The DP-1VA can collect data unattended to measure changes over time.
- Tolerances can be set in the unit and statistics can be calculated and printed directly from the DP-1VA.
- No additional software is required.
Mitutoyo - DP-1VA Data Logger & Printer - 264-505A
| Item No. | MSRP | Our Price | QTY |
|---|---|---|---|
| 264-505A | $590.00 | $531.00 |
Downloads:
DP-1VA Brochure
Features:
Optional Accessories:
09EAA084*: RS-232C changing cable (1m, 9pin)
965516*: GO/±NG judgment cable
937179T: Foot switch
09EAA082: (10 paper rolls)
*It is impossible to use the both RS-232C cable and GO/±NG judgment cable at the same time.

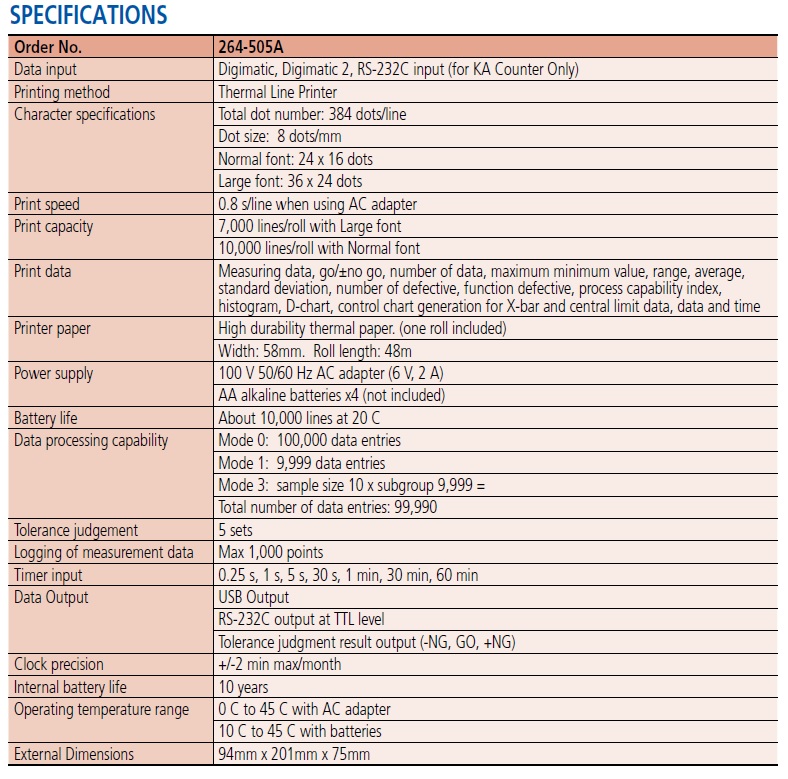

Technical Specs:
