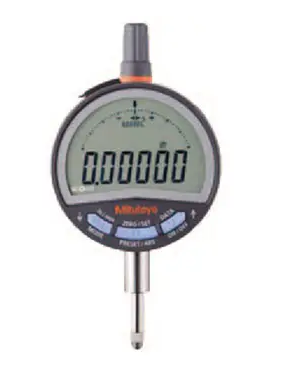

Mitutoyo - Digital Indicator - ID-C - 543-701B

Mitutoyo - Digital Indicator - ID-C - 543-701B

Starting at $501.00 $451.00
  • New part number replaces #543-391B
  • Similar in size to Series 2 dial indicators.
  • Switchable Resolution 0005"/0.01mm, .0001”/0.001mm or .00005”/0.001mm
  • Large, easy-to-read LCD.
  • Go/no-go judgment can be performed by setting upper and lower tolerance limits. The judgment result (go/no-go) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled.
  • Internal calculations using the simple formula of [F(x) = Ax)] are available.
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on.
  • Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
  • With SPC data output.

Item No. MSRP Our Price QTY
543-701B $501.00 $451.00
