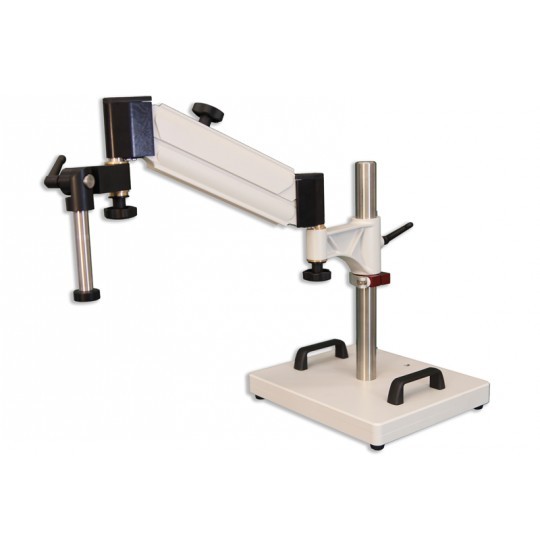

Meiji - SAS-1 Articulated Arm Stand

Meiji - SAS-1 Articulated Arm Stand

Starting at $1,600.00 $1,440.00

NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:

  • Stereo Microscope Body (Zoom, Turret or Fixed)
  • Eyepieces (Requires 2 of identical magnification)
  • Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
  • Focus Blocks (for when  the Body needs to be held)
  • Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
  • Auxiliary Lens (Optional)
Additional Information +
Item No. MSRP Our Price QTY
SAS-1 $1,600.00 $1,440.00

Features:

  • SAS-1 Articulating heavy duty industrial-type boom stand comes with a 20mm diameter drop down mounting post to perfectly complement our EMZ (Zoom), EMT (Turret), EMF (Fixed) Series Stereo Microscope with the proper focus blockBAS-2 uses linear ball bearings to support the horizontal arm, allowing it to glide over the work surface with none of the binding inherent in other boom stands
  • Lift Articulating Arm offers the greatest amount of reach along with ease to vertical positioning
  • Total arm length gives the user a total of 31” from the center of the vertical pole to the center of the focus block
  • 406.4mm (16”) vertical pole (Included)
  • Minimal space requirement and greatest possible amount stability for EM Series stereo system up to 30lbs
  • No loss of stability even at its furthest travel
  • The SAS-1 can swing out of the way easily, clearing the workstation for other tasks
  • Vertical column is used to compensate for taller specimen heights to accommodate the working distances of different microscope bodies
  • Anti-rotation is stabilized by a locking pin on the vertical post
  • Safety Collar for vertical and horizontal stability
  • SAS-1 is equipped by a 80lb base
  • Ergonomic flexibility, chemical resistant paint finish and corrosion resistant stainless steel columns make this boom stand an excellent choice in labs and production facilities
  • High density rubber feet for vibration stability
  • 100% MADE IN U.S.A
