Master Setting Disks - CHROME - (Inch)

Starting at $71.00
  • All gages conform to ANSI B47.1 and B89.1.5
  • Styles 1 and 3 are normally furnished with a bilateral tolerance: ± 1/2 tolerance
  • Style 2 normally furnished to the unilateral tolerance system:
    GO: - Tolerance
    NO GO: + Tolerance
  • HEMCOChrome™ Process unconditionally guaranteed against chipping or peeling
  • *These gages are made to order and cannot be returned
  • Delivery depends on size, quantity and tolerance

Select the Size, Style and Tolerance - then press CART where you'll fill in the specific gage size.

Additional Information +
Size (Inch):
Style:
Tolerance:
Item No. Size (Inch) Style Tolerance Material Our Price QTY
H-105-.150XXS1 .105-.150 Style 1 XX Chrome $179.00
H-105-.150XS1 .105-.150 Style 1 X Chrome $157.00
H-105-.150YS1 .105-.150 Style 1 Y Chrome $146.00
H-105-.150XXS2 .105-.150 Style 2 XX Chrome $336.00
H-105-.150XS2 .105-.150 Style 2 X Chrome $269.00
H-105-.150YS2 .105-.150 Style 2 Y Chrome $252.00
H-105-.150XXS3 .105-.150 Style 3 XX Chrome $168.00
H-105-.150XS3 .105-.150 Style 3 X Chrome $146.00
H-105-.150YS3 .105-.150 Style 3 Y Chrome $134.00
H-151-.230XXS1 .151-.230 Style 1 XX Chrome $179.00
H-151-.230XS1 .151-.230 Style 1 X Chrome $157.00
H-151-.230YS1 .151-.230 Style 1 Y Chrome $146.00
H-151-.230XXS2 .151-.230 Style 2 XX Chrome $302.00
H-151-.230XS2 .151-.230 Style 2 X Chrome $269.00
H-151-.230YS2 .151-.230 Style 2 Y Chrome $246.00
H-151-.230XXS3 .151-.230 Style 3 XX Chrome $157.00
H-151-.230XS3 .151-.230 Style 3 X Chrome $146.00
H-151-.230YS3 .151-.230 Style 3 Y Chrome $140.00
H-231-.365XXS1 .231-.365 Style 1 XX Chrome $179.00
H-231-.365XS1 .231-.365 Style 1 X Chrome $157.00
H-231-.365YS1 .231-.365 Style 1 Y Chrome $146.00
H-231-.365XXS2 .231-.365 Style 2 XX Chrome $302.00
H-231-.365XS2 .231-.365 Style 2 X Chrome $269.00
H-231-.365YS2 .231-.365 Style 2 Y Chrome $246.00
H-231-.365XXS3 .231-.365 Style 3 XX Chrome $162.00
H-231-.365XS3 .231-.365 Style 3 X Chrome $146.00
H-231-.365YS3 .231-.365 Style 3 Y Chrome $140.00
H-366-.510XXS1 .366-.510 Style 1 XX Chrome $179.00
H-366-.510XS1 .366-.510 Style 1 X Chrome $157.00
H-366-.510YS1 .366-.510 Style 1 Y Chrome $146.00
H-366-.510XXS2 .366-.510 Style 2 XX Chrome $308.00
H-366-.510XS2 .366-.510 Style 2 X Chrome $280.00
H-366-.510YS2 .366-.510 Style 2 Y Chrome $258.00
H-366-.510XXS3 .366-.510 Style 3 XX Chrome $168.00
H-366-.510XS3 .366-.510 Style 3 X Chrome $146.00
H-366-.510YS3 .366-.510 Style 3 Y Chrome $140.00
H-511-.825XXS1 .511-.825 Style 1 XX Chrome $185.00
H-511-.825XS1 .511-.825 Style 1 X Chrome $157.00
H-511-.825YS1 .511-.825 Style 1 Y Chrome $146.00
H-511-.825XXS2 .511-.825 Style 2 XX Chrome $308.00
H-511-.825XS2 .511-.825 Style 2 X Chrome $280.00
H-511-.825YS2 .511-.825 Style 2 Y Chrome $258.00
H-511-.825XXS3 .511-.825 Style 3 XX Chrome $168.00
H-511-.825XS3 .511-.825 Style 3 X Chrome $146.00
H-511-.825YS3 .511-.825 Style 3 Y Chrome $140.00
H-826-1.135XXS1 .826-1.135 Style 1 XX Chrome $185.00
H-826-1.135XS1 .826-1.135 Style 1 X Chrome $162.00
H-826-1.135YS1 .826-1.135 Style 1 Y Chrome $151.00
H-826-1.135XXS2 .826-1.135 Style 2 XX Chrome $314.00
H-826-1.135XS2 .826-1.135 Style 2 X Chrome $286.00
H-826-1.135YS2 .826-1.135 Style 2 Y Chrome $263.00
H-826-1.135XXS3 .826-1.135 Style 3 XX Chrome $179.00
H-826-1.135XS3 .826-1.135 Style 3 X Chrome $151.00
H-826-1.135YS3 .826-1.135 Style 3 Y Chrome $146.00
H-1.136-1.510XXS1 1.136-1.510 Style 1 XX Chrome $207.00
H-1.136-1.510XS1 1.136-1.510 Style 1 X Chrome $179.00
H-1.136-1.510YS1 1.136-1.510 Style 1 Y Chrome $157.00
H-1.136-1.510XXS2 1.136-1.510 Style 2 XX Chrome $364.00
H-1.136-1.510XS2 1.136-1.510 Style 2 X Chrome $291.00
H-1.136-1.510YS2 1.136-1.510 Style 2 Y Chrome $269.00
H-1.136-1.510XXS3 1.136-1.510 Style 3 XX Chrome $190.00
H-1.136-1.510XS3 1.136-1.510 Style 3 X Chrome $151.00
H-1.136-1.510YS3 1.136-1.510 Style 3 Y Chrome $146.00
H-1.511-2.010XXS1 1.511-2.010 Style 1 XX Chrome $246.00
H-1.511-2.010XS1 1.511-2.010 Style 1 X Chrome $202.00
H-1.511-2.010YS1 1.511-2.010 Style 1 Y Chrome $190.00
H-1.511-2.010XXS2 1.511-2.010 Style 2 XX Chrome $414.00
H-1.511-2.010XS2 1.511-2.010 Style 2 X Chrome $370.00
H-1.511-2.010YS2 1.511-2.010 Style 2 Y Chrome $347.00
H-1.511-2.010XXS3 1.511-2.010 Style 3 XX Chrome $224.00
H-1.511-2.010XS3 1.511-2.010 Style 3 X Chrome $196.00
H-1.511-2.010YS3 1.511-2.010 Style 3 Y Chrome $185.00
H-2.011-2.510XXS1 2.011-2.510 Style 1 XX Chrome $269.00
H-2.011-2.510XS1 2.011-2.510 Style 1 X Chrome $224.00
H-2.011-2.510YS1 2.011-2.510 Style 1 Y Chrome $202.00
H-2.011-2.510XXS2 2.011-2.510 Style 2 XX Chrome $482.00
H-2.011-2.510XS2 2.011-2.510 Style 2 X Chrome $375.00
H-2.011-2.510YS2 2.011-2.510 Style 2 Y Chrome $353.00
H-2.011-2.510XXS3 2.011-2.510 Style 3 XX Chrome $263.00
H-2.011-2.510XS3 2.011-2.510 Style 3 X Chrome $202.00
H-2.011-2.510YS3 2.011-2.510 Style 3 Y Chrome $185.00
H-2.511-3.010XXS1 2.511-3.010 Style 1 XX Chrome $314.00
H-2.511-3.010XS1 2.511-3.010 Style 1 X Chrome $252.00
H-2.511-3.010YS1 2.511-3.010 Style 1 Y Chrome $235.00
H-2.511-3.010XXS2 2.511-3.010 Style 2 XX Chrome $560.00
H-2.511-3.010XS2 2.511-3.010 Style 2 X Chrome $448.00
H-2.511-3.010YS2 2.511-3.010 Style 2 Y Chrome $414.00
H-2.511-3.010XXS3 2.511-3.010 Style 3 XX Chrome $297.00
H-2.511-3.010XS3 2.511-3.010 Style 3 X Chrome $246.00
H-2.511-3.010YS3 2.511-3.010 Style 3 Y Chrome $224.00
H-3.011-3.510XXS1 3.011-3.510 Style 1 XX Chrome $448.00
H-3.011-3.510XS1 3.011-3.510 Style 1 X Chrome $392.00
H-3.011-3.510YS1 3.011-3.510 Style 1 Y Chrome $370.00
H-3.011-3.510XXS2 3.011-3.510 Style 2 XX Chrome $728.00
H-3.011-3.510XS2 3.011-3.510 Style 2 X Chrome $672.00
H-3.011-3.510YS2 3.011-3.510 Style 2 Y Chrome $616.00
H-3.011-3.510XXS3 3.011-3.510 Style 3 XX Chrome $414.00
H-3.011-3.510XS3 3.011-3.510 Style 3 X Chrome $375.00
H-3.011-3.510YS3 3.011-3.510 Style 3 Y Chrome $347.00
H-3.511-4.010XXS1 3.511-4.010 Style 1 XX Chrome $504.00
H-3.511-4.010XS1 3.511-4.010 Style 1 X Chrome $448.00
H-3.511-4.010YS1 3.511-4.010 Style 1 Y Chrome $420.00
H-3.511-4.010XXS2 3.511-4.010 Style 2 XX Chrome $784.00
H-3.511-4.010XS2 3.511-4.010 Style 2 X Chrome $694.00
H-3.511-4.010YS2 3.511-4.010 Style 2 Y Chrome $627.00
H-3.511-4.010XXS3 3.511-4.010 Style 3 XX Chrome $426.00
H-3.511-4.010XS3 3.511-4.010 Style 3 X Chrome $381.00
H-3.511-4.010YS3 3.511-4.010 Style 3 Y Chrome $364.00
H-4.011-4.510XXS1 4.011-4.510 Style 1 XX Chrome $532.00
H-4.011-4.510XS1 4.011-4.510 Style 1 X Chrome $476.00
H-4.011-4.510YS1 4.011-4.510 Style 1 Y Chrome $448.00
H-4.011-4.510XXS3 4.011-4.510 Style 3 XX Chrome $431.00
H-4.011-4.510XS3 4.011-4.510 Style 3 X Chrome $392.00
H-4.011-4.510YS3 4.011-4.510 Style 3 Y Chrome $370.00
H- 4.511-5.010 XXS1 4.511-5.010 Style 1 XX Chrome $672.00
H- 4.511-5.010 XS1 4.511-5.010 Style 1 X Chrome $588.00
H- 4.511-5.010 YS1 4.511-5.010 Style 1 Y Chrome $554.00
H- 4.511-5.010 XXS3 4.511-5.010 Style 3 XX Chrome $448.00
H- 4.511-5.010 XS3 4.511-5.010 Style 3 X Chrome $409.00
H- 4.511-5.010 YS3 4.511-5.010 Style 3 Y Chrome $381.00
H-5.011-5.510XXS1 5.011-5.510 Style 1 XX Chrome $694.00
H-5.011-5.510XS1 5.011-5.510 Style 1 X Chrome $616.00
H-5.011-5.510YS1 5.011-5.510 Style 1 Y Chrome $588.00
H-5.011-5.510XXS3 5.011-5.510 Style 3 XX Chrome $459.00
H-5.011-5.510XS3 5.011-5.510 Style 3 X Chrome $414.00
H-5.011-5.510YS3 5.011-5.510 Style 3 Y Chrome $392.00
H-5.511-6.010XXS1 5.511-6.010 Style 1 XX Chrome $706.00
H-5.511-6.010XS1 5.511-6.010 Style 1 X Chrome $627.00
H-5.511-6.010YS1 5.511-6.010 Style 1 Y Chrome $588.00
H-5.511-6.010XXS3 5.511-6.010 Style 3 XX Chrome $493.00
H-5.511-6.010XS3 5.511-6.010 Style 3 X Chrome $420.00
H-5.511-6.010YS3 5.511-6.010 Style 3 Y Chrome $398.00
H-6.011-6.510XXS1 6.011-6.510 Style 1 XX Chrome $784.00
H-6.011-6.510XS1 6.011-6.510 Style 1 X Chrome $694.00
H-6.011-6.510YS1 6.011-6.510 Style 1 Y Chrome $655.00
H-6.011-6.510XXS3 6.011-6.510 Style 3 XX Chrome $556.00
H-6.011-6.510XS3 6.011-6.510 Style 3 X Chrome $459.00
H-6.011-6.510YS3 6.011-6.510 Style 3 Y Chrome $431.00
H-6.511-7.010XXS1 6.511-7.010 Style 1 XX Chrome $1,120.00
H-6.511-7.010XS1 6.511-7.010 Style 1 X Chrome $1,064.00
H-6.511-7.010YS1 6.511-7.010 Style 1 Y Chrome $997.00
H-6.511-7.010XXS3 6.511-7.010 Style 3 XX Chrome $728.00
H-6.511-7.010XS3 6.511-7.010 Style 3 X Chrome $650.00
H-6.511-7.010YS3 6.511-7.010 Style 3 Y Chrome $616.00
H-7.011-7.510XXS1 7.011-7.510 Style 1 XX Chrome $1,204.00
H-7.011-7.510XS1 7.011-7.510 Style 1 X Chrome $1,120.00
H-7.011-7.510YS1 7.011-7.510 Style 1 Y Chrome $1,030.00
H-7.011-7.510XXS3 7.011-7.510 Style 3 XX Chrome $745.00
H-7.011-7.510XS3 7.011-7.510 Style 3 X Chrome $672.00
H-7.011-7.510YS3 7.011-7.510 Style 3 Y Chrome $627.00
H-7.511-8.010XXS1 7.511-8.010 Style 1 XX Chrome $1,238.00
H-7.511-8.010XS1 7.511-8.010 Style 1 X Chrome $1,176.00
H-7.511-8.010YS1 7.511-8.010 Style 1 Y Chrome $1,109.00
H-7.511-8.010XXS3 7.511-8.010 Style 3 XX Chrome $756.00
H-7.511-8.010XS3 7.511-8.010 Style 3 X Chrome $672.00
H-7.511-8.010YS3 7.511-8.010 Style 3 Y Chrome $644.00

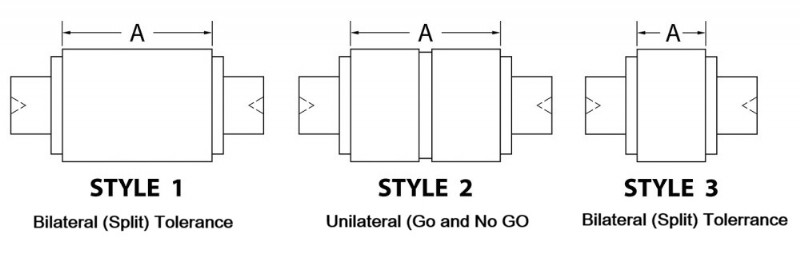

Technical Specs:



Master Setting Discs Gages conform to ASME B47.1

      Styles 1 and 3 are furnished with a bilateral tolerance: ± 1/2 tolerance.
      Style 2 furnished to the unilateral tolerance system: Go:- (minus), Not Go: + (plus)

Inch Diameter Range Above To & Including

Metric Diameter Range Above To & Including

Style 1 Length

Style 2 Length: 2 Diameters - Length of each dia.

Style 3 Length

.105 thru .150

2.67 thru 3.81

3/4

5/16

3/8

.150 thru .230

3.81 thru 5.80

7/8

3/8

7/16

.230 thru .365

5.80 thru 9.27

1

7/16

1/2

.365 thru .510

9.27 thru 12.95

1-1/8

1/2

9/16

.510 thru .825

12.95 thru 20.95

1-1/4

9/16

5/8

.825 thru 1.135

20.95 thru 28.83

1-3/8

5/8

11/16

1.135 thru 1.510

28.83 thru 38.35

1-5/8

3/4

13/16

1.510 thru 2.010

38.35 thru 51.05

1-7/8

7/8

7/8

2.010 thru 2.510

51.05 thru 63.75

2

1

7/8

2.510 thru 3.510

63.75 thru 89.15

2

1

1

3.510 thru 8.010

89.15 thru 203.45

2-1/8

1

1

Style 2, 1.510 dia. to and including 8.010 dia. are two Style 3 master discs separated by an AGD separator plate and held together with a tie rod and insulators.
