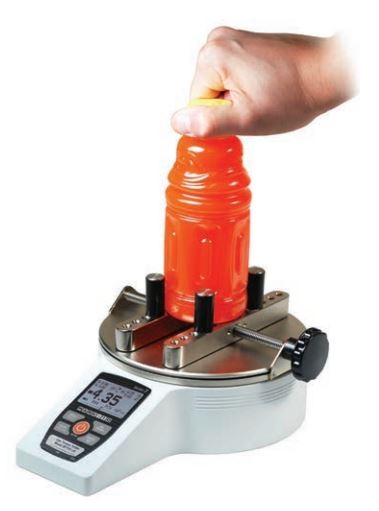

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm].
Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles.
A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Features
Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes

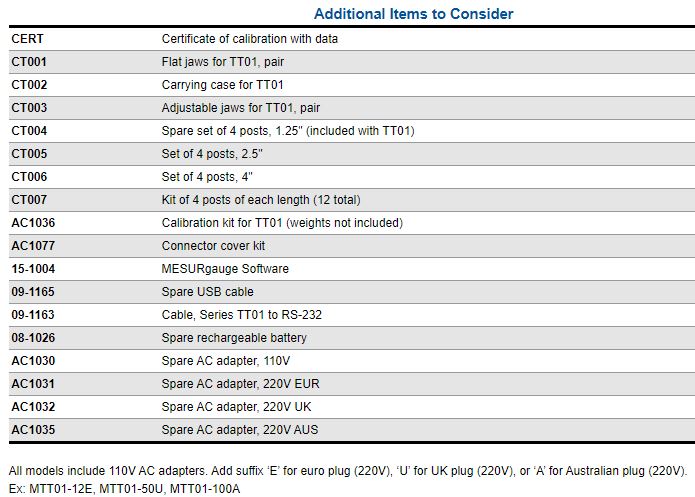

Available extended post lengths and other gripping options
USB, RS-232, Mitutoyo, and analog outputs
Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
First / second peak detection for slip and breakaway torques in tamper evident closures
1,000-point data memory with statistics and outputs
Password protection prevents unauthorized changes
Programmable set point indicators and outputs for pass/ fail determination
