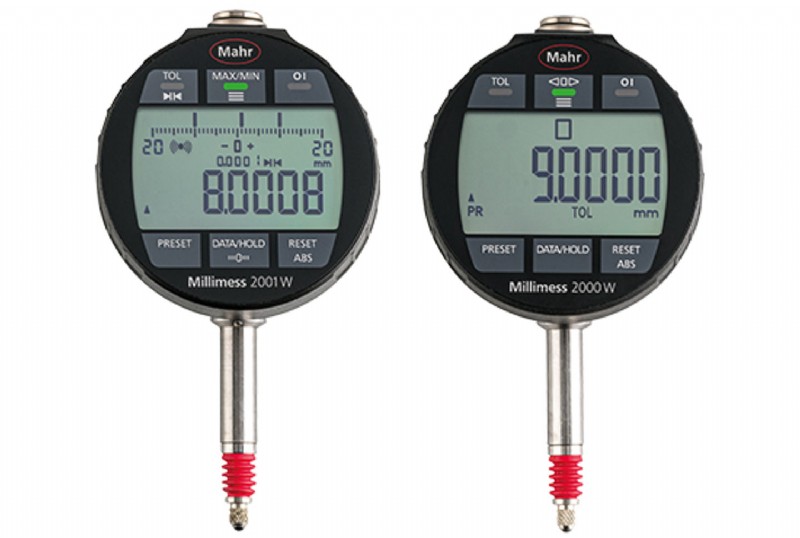

Mahr Millimess 2000 W(i) and 2001 W(i) series of electronic comparators

Mahr Millimess 2000 W(i) and 2001 W(i) series of electronic comparators

Starting at $958.00 $862.00
    • LED tolerance display with optical light signal for measured value classification: Go/No-go/Rework display or warning limits for measurements during production
    • Warning limit function: manual warning limit entry possible (10 percent/ 20 percent/ 30 percent)
    • 2000 W(i): for static measuring tasks – with tolerance function and clear symbols in the display
    • 2001 W(i): for static and dynamic measuring tasks – with additional analog scale display. The moving pointer allows the measuring movement and tolerance limits of the probe to be reliably identified visually.
Additional Information +
Measurement Type:
Item No. Measurement Type RemarksMSRP Our Price QTY
4346700 Static Measurement 2000 W$958.00 $862.00
4346701 Static Measurement w/Wierless 2000 WI$1,030.00 $927.00
4346800 Dynamic Measurement (MIN MAX TIR) 2001 W$1,070.00 $963.00
4346801 Dynamic Measurement (MIN MAX TIR) w/Wireless 2001 WI$1,170.00 $1,053.00

Features:

  • LED tolerance display with optical light signal for measured value classification: Go/No-go/Rework display or warning limits for measurements during production
  • Warning limit function: manual warning limit entry possible (10 percent/ 20 percent/ 30 percent)
  • 2000 W(i): for static measuring tasks – with tolerance function and clear symbols in the display
  • 2001 W(i): for static and dynamic measuring tasks – with additional analog scale display. The moving pointer allows the measuring movement and tolerance limits of the probe to be reliably identified visually.

Technical Specs:

  • Flexible data acquisition Integrated Wireless or via data cable
  • Autonomous measurement via battery operation (up to 4 weeks)
  • Stationary application with permanent power supply via USB charging and data cable DK-U1
  • Integrated Wireless: Proven and reliable wireless interface, easily configurable and remotely controllable via software. This bidirectional interface is only available on Wi models.
  • USB: Bidirectional interface for measurement data transmission. In addition, the device can be easily configured and remotely controlled via MarCom software.
  • Digimatic cable: Compatible with your existing peripherals. Please note: With Digmatic format, only measurement data transmission is possible.
  • The Millimess comparators are ideal for mobile measuring tasks.
  • The extremely compact size is particularly advantageous for stationary multiple measuring devices. I
  • t essentially corresponds to the dimensions of dial gages.
  • The power supply runs optionally via rechargeable battery (up to 1 month) or in stationary operation permanently via USB data cable DK-U1 (included in delivery).
