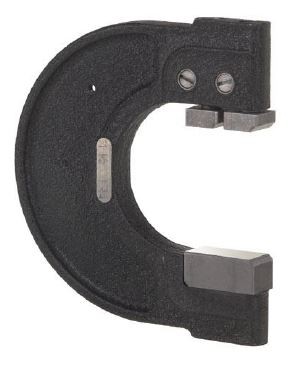

- Model C Square Anvil Type Anvils
- Ideal for Gaging flat surfaces or turned parts still on machine centers.
- Go, Not Go type comparative gages.
- Gaging surfaces are Hardened, ground and lapped.
- Frames Machined from Stabilized Cast Iron
- Manufactured to ANSI B47-1-1988
- Marking discs supplied on all gages.
- The Go member must be larger than the No go when it comes to Sizes.
GSG - Snap Gages - "C" Style Adjustable Limit
Filter Products:
Range:
Unset or Set & Sealed:
| Item No. | Range | Unset or Set & Sealed | Remarks | Our Price | QTY |
|---|---|---|---|---|---|
| SN0000001-UNSET | 0 - 1/4" | Unset | Frame 1 | $284.00 | |
| SN0000001-SET | 0 - 1/4" | Set & Sealed | Frame 1 | $329.00 | |
| SN0000001-UNSETM | 0 - 1/4" | Unset but Marked | Frame 1 | $299.00 | |
| SN0000002-UNSET | 1/4 - 1/2" | Unset | Frame 2 | $289.00 | |
| SN0000002-SET | 1/4 - 1/2" | Set & Sealed | Frame 2 | $334.00 | |
| SN0000002-UNSETM | 1/4 - 1/2" | Unset but Marked | Frame 2 | $304.00 | |
| SN0000003-UNSET | 1/2 - 3/4" | Unset | Frame 2X | $304.00 | |
| SN0000003-SET | 1/2 - 3/4" | Set & Sealed | Frame 2X | $334.00 | |
| SN0000003-UNSETM | 1/2 - 3/4" | Unset but Marked | Frame 2X | $289.00 | |
| SN0000004-UNSET | 3/4 - 1.0" | Unset | Frame 3 | $302.00 | |
| SN0000004-SET | 3/4 - 1.0" | Set & Sealed | Frame 3 | $347.00 | |
| SN0000004-UNSETM | 3/4 - 1.0" | Unset but Marked | Frame 3 | $317.00 | |
| SN0000005-UNSET | 1.0 - 1 1/4" | Unset | Frame 3X | $317.00 | |
| SN0000005-SET | 1.0 - 1 1/4" | Set & Sealed | Frame 3X | $347.00 | |
| SN0000005-UNSETM | 1.0 - 1 1/4" | Unset but Marked | Frame 3X | $302.00 | |
| SN0000006-UNSET | 1 1/4 - 1 1/2" | Unset | Frame 4 | $307.00 | |
| SN0000006-SET | 1 1/4 - 1 1/2" | Set & Sealed | Frame 4 | $352.00 | |
| SN0000006-UNSETM | 1 1/4 - 1 1/2" | Unset but Marked | Frame 4 | $322.00 | |
| SN0000007-UNSET | 1 1/2 - 1 3/4" | Unset | Frame 4X | $322.00 | |
| SN0000007-SET | 1 1/2 - 1 3/4" | Set & Sealed | Frame 4X | $352.00 | |
| SN0000007-UNSETM | 1 1/2 - 1 3/4" | Unset but Marked | Frame 4X | $307.00 | |
| SN0000008-UNSET | 1 3/4 - 2.0" | Unset | Frame 5 | $320.00 | |
| SN0000008-SET | 1 3/4 - 2.0" | Set & Sealed | Frame 5 | $365.00 | |
| SN0000008-UNSETM | 1 3/4 - 2.0" | Unset but Marked | Frame 5 | $335.00 | |
| SN0000009-UNSET | 2.0 - 2 1/4" | Unset | Frame 5X | $335.00 | |
| SN0000009-SET | 2.0 - 2 1/4" | Set & Sealed | Frame 5X | $365.00 | |
| SN0000009-UNSETM | 2.0 - 2 1/4" | Unset but Marked | Frame 5X | $320.00 | |
| SN0000010-UNSET | 2 1/4 - 2 1/2" | Unset | Frame 6 | $334.00 | |
| SN0000010-SET | 2 1/4 - 2 1/2" | Set & Sealed | Frame 6 | $379.00 | |
| SN0000010-UNSETM | 2 1/4 - 2 1/2" | Unset but Marked | Frame 6 | $349.00 | |
| SN0000011-UNSET | 2 1/2 - 2 3/4" | Unset | Frame 6X | $334.00 | |
| SN0000011-SET | 2 1/2 - 2 3/4" | Set & Sealed | Frame 6X | $379.00 | |
| SN0000011-UNSETM | 2 1/2 - 2 3/4" | Unset but Marked | Frame 6X | $334.00 | |
| SN0000012-UNSET | 2 3/4 - 3 1/16" | Unset | Frame 7 | $384.00 | |
| SN0000012-SET | 2 3/4 - 3 1/16" | Set & Sealed | Frame 7 | $429.00 | |
| SN0000012-UNSETM | 2 3/4 - 3 1/16" | Unset but Marked | Frame 7 | $399.00 | |
| SN0000013-UNSET | 3 1/16 - 3 7/16" | Unset | Frame 7X | $399.00 | |
| SN0000013-SET | 3 1/16 - 3 7/16" | Set & Sealed | Frame 7X | $429.00 | |
| SN0000013-UNSETM | 3 1/16 - 3 7/16" | Unset but Marked | Frame 7X | $384.00 | |
| SN0000014-UNSET | 3 7/16 - 3 13/16" | Unset | Frame 8 | $416.00 | |
| SN0000014-SET | 3 7/16 - 3 13/16" | Set & Sealed | Frame 8 | $461.00 | |
| SN0000014-UNSETM | 3 7/16 - 3 13/16" | Unset but Marked | Frame 8 | $431.00 | |
| SN0000015-UNSET | 3 13/16 - 4 3/16" | Unset | Frame 8X | $431.00 | |
| SN0000015-SET | 3 13/16 - 4 3/16" | Set & Sealed | Frame 8X | $461.00 | |
| SN0000015-UNSETM | 3 13/16 - 4 3/16" | Unset but Marked | Frame 8X | $416.00 | |
| SN0000016-UNSET | 4 3/16 - 4 9/16" | Unset | Frame 9 | $477.00 | |
| SN0000016-SET | 4 3/16 - 4 9/16" | Set & Sealed | Frame 9 | $522.00 | |
| SN0000016-UNSETM | 4 3/16 - 4 9/16" | Unset but Marked | Frame 9 | $492.00 | |
| SN0000017-UNSET | 4 9/16 - 4 15/16" | Unset | Frame 9X | $192.00 | |
| SN0000017-SET | 4 9/16 - 4 15/16" | Set & Sealed | Frame 9X | $522.00 | |
| SN0000017-UNSETM | 4 9/16 - 4 15/16" | Unset but Marked | Frame 9X | $477.00 | |
| SN0000018-UNSET | 4 15/16" - 5 5/16" | Unset | Frame 10 | $558.00 | |
| SN0000018-SET | 4 15/16" - 5 5/16" | Set & Sealed | Frame 10 | $603.00 | |
| SN0000018-UNSETM | 4 15/16" - 5 5/16" | Unset but Marked | Frame 10 | $573.00 | |
| SN0000019-UNSET | 5 5/16 - 5 11/16 | Unset | Frame 10X | $573.00 | |
| SN0000019-SET | 5 5/16 - 5 11/16 | Set & Sealed | Frame 10X | $603.00 | |
| SN0000019-UNSETM | 5 5/16 - 5 11/16 | Unset but Marked | Frame 10X | $558.00 | |
| SN0000020-UNSET | 5 11/16 - 6 1/8" | Unset | Frame 11 | $713.00 | |
| SN0000020-SET | 5 11/16 - 6 1/8" | Set & Sealed | Frame 11 | $758.00 | |
| SN0000020-UNSETM | 5 11/16 - 6 1/8" | Unset but Marked | Frame 11 | $728.00 | |
| SN0000021-UNSET | 6 1/8 - 6 5/8" | Unset | Frame 11X | $728.00 | |
| SN0000021-SET | 6 1/8 - 6 5/8" | Set & Sealed | Frame 11X | $758.00 | |
| SN0000021-UNSETM | 6 1/8 - 6 5/8" | Unset but Marked | Frame 11X | $713.00 | |
| SN0000022-UNSET | 6 5/8" - 7 1/8" | Unset | Frame 12 | $813.00 | |
| SN0000022-SET | 6 5/8" - 7 1/8" | Set & Sealed | Frame 12 | $858.00 | |
| SN0000022-UNSETM | 6 5/8" - 7 1/8" | Unset but Marked | Frame 12 | $828.00 | |
| SN0000023-UNSET | 7 1/8 - 7 5/8" | Unset | Frame 12X | $813.00 | |
| SN0000023-SET | 7 1/8 - 7 5/8" | Set & Sealed | Frame 12X | $858.00 | |
| SN0000023-UNSETM | 7 1/8 - 7 5/8" | Unset but Marked | Frame 12X | $813.00 | |
| SN0000024-UNSET | 7 5/8" - 8 1/8" | Unset | Frame 13 | $896.00 | |
| SN0000024-SET | 7 5/8" - 8 1/8" | Set & Sealed | Frame 13 | $941.00 | |
| SN0000024-UNSETM | 7 5/8" - 8 1/8" | Unset but Marked | Frame 130 | $911.00 | |
| SN0000025-UNSET | 8 1/8 - 8 5/8" | Unset | Frame 13X | $911.00 | |
| SN0000025-SET | 8 1/8 - 8 5/8" | Set & Sealed | Frame 13X | $941.00 | |
| SN0000025-UNSETM | 8 1/8 - 8 5/8" | Unset but Marked | Frame 13X | $896.00 |
Technical Specs:
