- Model Round Type Anvils
- Ideal for Gaging flat surfaces or turned parts still on machine centers.
- Go, Not Go type comparative gages.
- Gaging surfaces are Hardened, ground and lapped.
- Frames Machined from Stabilized Cast Iron
- Marking discs supplied on all gages.
- The Go member must be larger than the No go when it comes to Sizes.

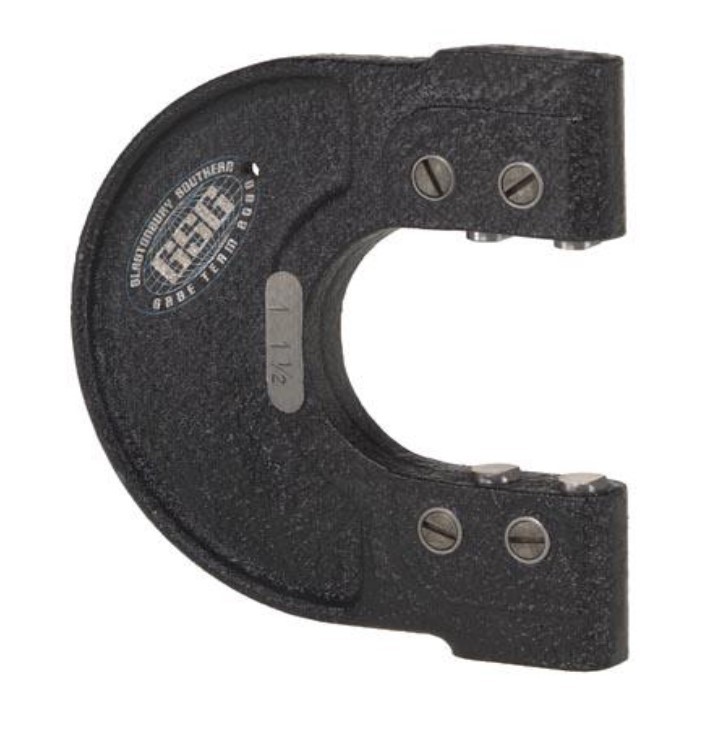

GSG - Snap Gages - "A" Style Adjustable Limit Duplicate
Filter Products:
Range:
Unset or Set & Sealed:
| Item No. | Range | Unset or Set & Sealed | Our Price | QTY |
|---|---|---|---|---|
| 0-1/2 | 0 - 1/2" | Unset | $255.00 | |
| 0-1/2 | 0 - 1/2" | Set & Sealed | $300.00 | |
| 0-1/2 | 0 - 1/2" | Unset but Marked | $270.00 | |
| 1/2-1 | 1/2 - 1" | Unset | $262.00 | |
| 1/2-1 | 1/2 - 1" | Set & Sealed | $307.00 | |
| 1/2-1 | 1/2 - 1" | Unset but Marked | $277.00 | |
| 1 - 1 1/2 | 1 - 1 1/2" | Unset but Marked | $290.00 | |
| 1 - 1 1/2 | 1 - 1 1/2" | Set & Sealed | $320.00 | |
| 1 - 1 1/2 | 1 - 1 1/2" | Unset | $275.00 | |
| 1 1/2 - 2 | 1 1/2 - 2" | Unset | $284.00 | |
| 1 1/2 - 2 | 1 1/2 - 2" | Set & Sealed | $329.00 | |
| 1 1/2 - 2 | 1 1/2 - 2" | Unset but Marked | $300.00 | |
| 2 - 2 1/2 | 2 - 2 1/2" | Unset | $305.00 | |
| 2 - 2 1/2 | 2 - 2 1/2" | Unset but Marked | $320.00 | |
| 2 - 2 1/2 | 2 - 2 1/2" | Set & Sealed | $360.00 | |
| 2 1/2 - 3 | 2 1/2 - 3" | Set & Sealed | $365.00 | |
| 2 1/2 - 3 | 2 1/2 - 3" | Unset but Marked | $335.00 | |
| 2 1/2 - 3 | 2 1/2 - 3" | Unset | $320.00 | |
| 3 - 3- 3/4 | 3 - 3- 3/4" | Unset | $354.00 | |
| 3 - 3- 3/4 | 3 - 3- 3/4" | Unset but Marked | $369.00 | |
| 3 - 3- 3/4 | 3 - 3- 3/4" | Set & Sealed | $399.00 | |
| 3 3/4 - 4 1/2 | 3 3/4 - 4 1/2" | Set & Sealed | $429.00 | |
| 3 3/4 - 4 1/2 | 3 3/4 - 4 1/2" | Unset but Marked | $399.00 | |
| 3 3/4 - 4 1/2 | 3 3/4 - 4 1/2" | Unset | $384.00 | |
| 4 1/2 - 5 1/4 | 4 1/2 - 5 1/4" | Unset | $438.00 | |
| 4 1/2 - 5 1/4 | 4 1/2 - 5 1/4" | Unset but Marked | $453.00 | |
| 4 1/2 - 5 1/4 | 4 1/2 - 5 1/4" | Set & Sealed | $483.00 | |
| 5 1/4 - 6 | 5 1/4 - 6" | Set & Sealed | $536.00 | |
| 5 1/4 - 6 | 5 1/4 - 6" | Unset but Marked | $506.00 | |
| 5 1/4 - 6 | 5 1/4 - 6" | Unset | $491.00 |
