Fowler Bowers - XTH3 Holematic Pistol Grip Sets - 0.08" - 12.0" Ranges - INDIVIDUAL RANGES

Starting at $2,324.46 $2,031.00

Fowler Bowers - XTH3 Holematic Pistol Grip Sets - BLUETOOTH - 0.08" - 12.0" Ranges

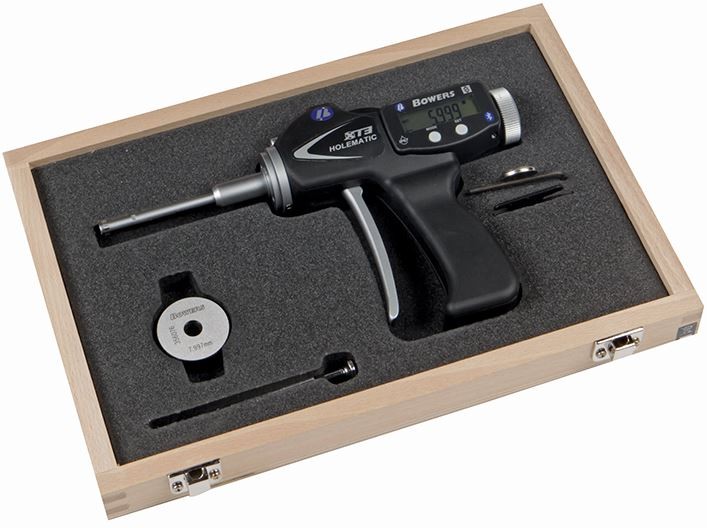

Electronic Holematic Pistol Grip XTH3 Set heads, handle, and setting rings

  • Fowler-Bowers BLUETOOTH XTH3 Holematic Pistol Grip Sets range of bore gages offer extended travel with fixed anvils.
  • The pistol grip handle incorporates a constant measuring pressure to eliminate operator "feel."
Additional Information +

Narrow your search:

Range:

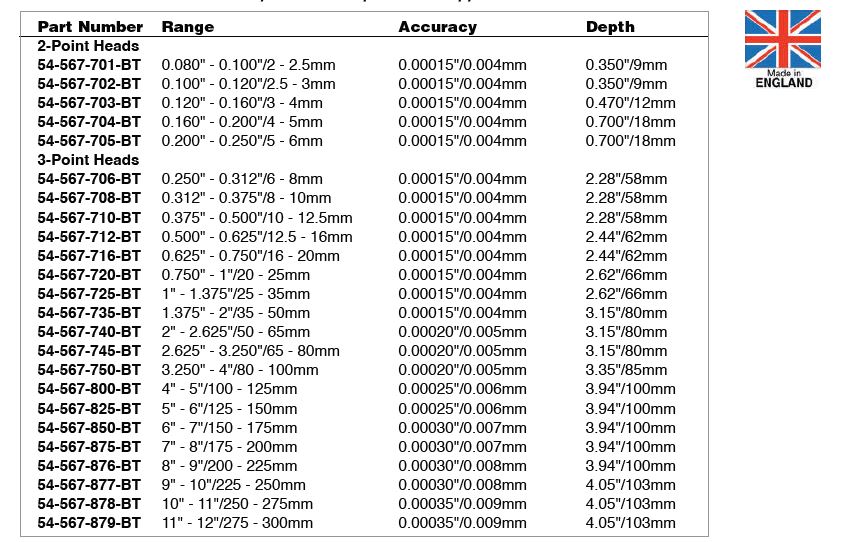

Item No. Range MSRP Our Price QTY
54-567-701-BT .080 - .100" (54-567-701-BT) $3,281.92 $2,953.00
54-567-702-BT .100 - .120" (54-567-702-BT) $3,281.92 $2,953.00
54-567-703-BT .120 - .160" (54-567-703-BT) $3,281.92 $2,953.00
54-567-704-BT .160 -.200" (54-567-704-BT) $3,281.92 $2,953.00
54-567-705-BT .200 - .250" (54-567-705-BT) $3,281.92 $2,953.00
54-567-706-BT 1/4 - 5/16" (54-567-706-BT) $2,372.89 $2,073.00
54-567-708-BT 5/16 - 3/8" (54-567-708-BT) $2,324.46 $2,031.00
54-567-710-BT 3/8 - 1/2" (54-567-710-BT) $2,448.54 $2,203.00
54-567-712-BT 1/2 - 5/8" (54-567-712-BT) $2,476.87 $2,228.00
54-567-716-BT 5/8 - 3/4" (54-567-716-BT) $2,618.16 $2,356.00
54-567-720-BT 3/4 - 1" (54-567-720-BT) $2,774.23 $2,496.00
54-567-725-BT 1 - 1 3/8" ( 54-567-725-BT) $2,995.97 $2,695.00
54-567-735-BT 1 3/8 - 2" (54-567-735-BT) $3,075.38 $2,767.00
54-567-740-BT 2 - 2 5/8" (54-567-740-BT) $3,144.31 $2,829.00
54-567-745-BT 2 5/8 - 3 1/4" (54-567-745-BT) $3,144.31 $2,829.00
54-567-750-BT 3 1/4 - 4" ( 54-567-750-BT) $3,337.20 $3,003.00
54-567-800-BT 4 - 5" (54-567-800-BT) $3,485.94 $3,136.00
54-567-825-BT 5 - 6" (54-567-825-BT) $3,681.47 $3,312.00
54-567-850-BT 6 - 7" (54-567-850-BT) $3,887.89 $3,498.00
54-567-875-BT 7 - 8" (54-567-875-BT) $4,055.10 $3,649.00
54-567-876-BT 8 - 9" (54-567-876-BT) $5,270.71 $4,743.00
54-567-877-BT 9 - 10" (54-567-877-BT) $5,799.27 $5,219.00
54-567-878-BT 10 - 11" (54-567-878-BT) $5,999.62 $5,399.00
54-567-879-BT 11 - 12" (54-567-879-BT) $6,594.59 $5,934.00

Features:

  • To reduce hand fatigue, the travel of the trigger is adjustable for minimum over-travel.
  • Larger easy-to-read swivel display
  • Self centering heads
  • Proximity output and USB connectivity.
  • Four preset memories
  • Fixed anvils
  • Resolution: .00005" /.001mm
  • Range .080"—12" (2—300mm)
  • Tungsten carbide measuring faces on all 3-point heads from .5" (12.5mm) and up.
  • Heads with special anvils available for threads, splines, slots, etc.
  • Sizes over .500" (12.5mm) feature blind bore capability
  • Setting rings included in all sets
  • Includes UKAS certificates for all pistol grip, heads and rings.
  • IP67 RATED

Technical Specs:
