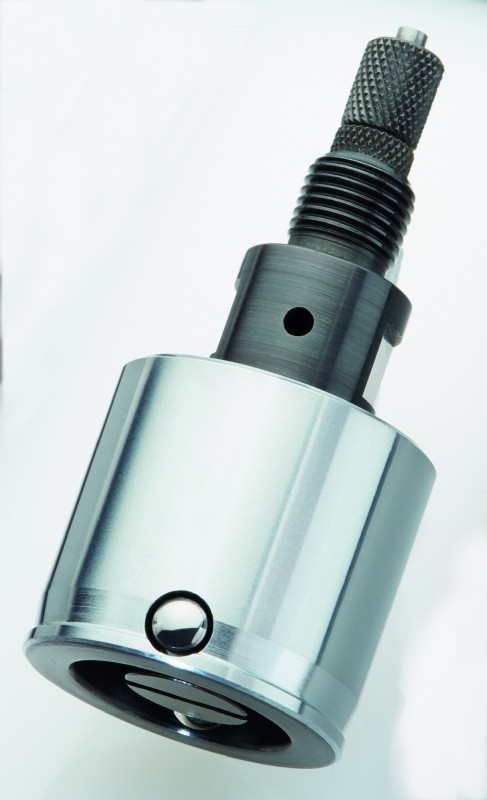

Easy-to-use, self-indicating and self-centering bore gauge for the measurement of inner- and outer diameter, with highest precision and absolute accurate results.
BMD Plugs allows for Precise Gaging :
Through Hole Bores: from 2.0 to 270 mm,
Measurement of Blind Bores(Flat-Bottom): from 2,0 (T-BMD-FB) to 150 mm,
Measurement of O.D.: from 20 to 100 mm,
Multiplane plug gauges: from 21 mm,
Internal gear gauges: from 10 mm cylinder diameter
3-Point Measurement: from 8.0 to 100 mm,
For very small diameters from 2.0 mm to 3.0 mm
Measurement of parallel distances: from 1.0 (T-BMD-PA) to 30 mm
Special sizes,shapes and models, e. g. tapered bores
Extension or limitations of the measuring range, adjustment of the measuring pressure, air supply,…
