Duo is well-suited for simple manual applications when only a few measurements are
needed on the shop floor at any given time. Featuring two sensor input channels, it can
simultaneously display two measurements. The system is easy to configure and provides
clear visualization of measurement status.
Duo is designed to work with Marposs LVDT and HBT manual gauges, such as bore gauges
M1 and M1 Star, snap gauges M3 Star, ring gauges M4 and M4 Star, and
RedCrown/RedCrown2 displacement sensors with a measuring range up to ± 10 mm. It
can also connect HBT sensors from TESA.
Data collected can be stored internally in the flash memory providing powerful memory
capacity, exported through the USB port or the optional Fieldbus port.
Duo software guarantees a friendly and easy to use operator interface. The true flat
touch-screen allows to program and acquire measures without any additional
input/command device.
Easier cycle management through 2 IN (Start/Stop, zeroing), 2 OUT (part good or scrap)
and one separate input for a footswitch.
Designed also for portable use, it can be powered by an external battery (at least 16000
mAh to guarantee one working shift).

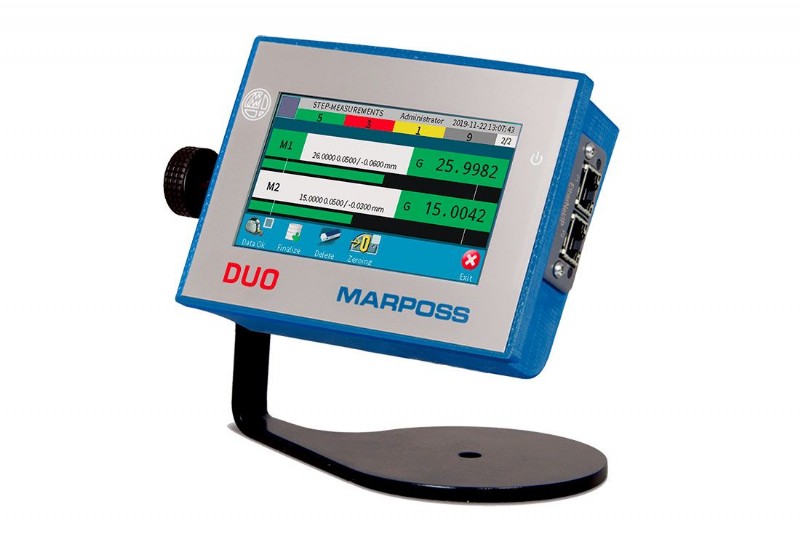

Marposs - Duo is a premium 4.3’’ electronic display unit allowing to perform simple measurement applications intuitively and rapidly
As small as a smart phone, Duo is extremely compact and powerful. Designed in response to customer needs, it is a “something in-between” display unit that provides premium features at an affordable price.
- Easy to configure and easy to use
- Cost-effective for simple applications
- Extremely clear visualization of the measurement status
- Designed for portable use
- Suitable for the workshop (IP54 front panel)
Main hardware characteristics
Case Robust industrial Aluminum case
Protection IP54 on front panel; IP40 on rear panel
Touch screen Capacitive, true flat
Storage media Internal 4 GB Micro SD memory or removable USB memory device
LCD display tape 4.3’’ color TFT
Ethernet/Fieldbus Available types are Ethernet/IP, Profibus, Profinet
Usb ports 1 x type B (only for power supply) + 1 x type A
Serial port 1 x RS232C + 1 x RS485
Bench-top support Reclinable
Power supply 5V 1.4A
Dimension 130 x 95 x 50 mm (5.12’’ x 3.74’’ x 1.97’’)
Weight 1 kg
Operating temperature 5 to 45 °C (41 to 113 °F)
Storage temperature -20 to 70 °C (-4 to 158 °F)
MEASUREMENTS
Measurement capability up to two (2) characteristics.
Dynamic acquisitions [Max, min, Range, Average, (Maxmin/2)].
Multiple measurement display with numeric and graphical layout.
Acquisition command through external signal (footswitch) or touch-screen.
Measurement data transmission through Fieldbus (option) or serial port.
Part counters.
Remote data storage and export through removable
USB memory device.
Data storage format: .CSV (Microsoft® Excel Comma Separated Values).
CONFIGURATION AND PROGRAMMING
• Multi-language support for European and Asian languages:
• Programming interface designed to be used with touchscreen
• Configuration Backup-Restore-Update by USB memory devices
• Password protected multi-user management
