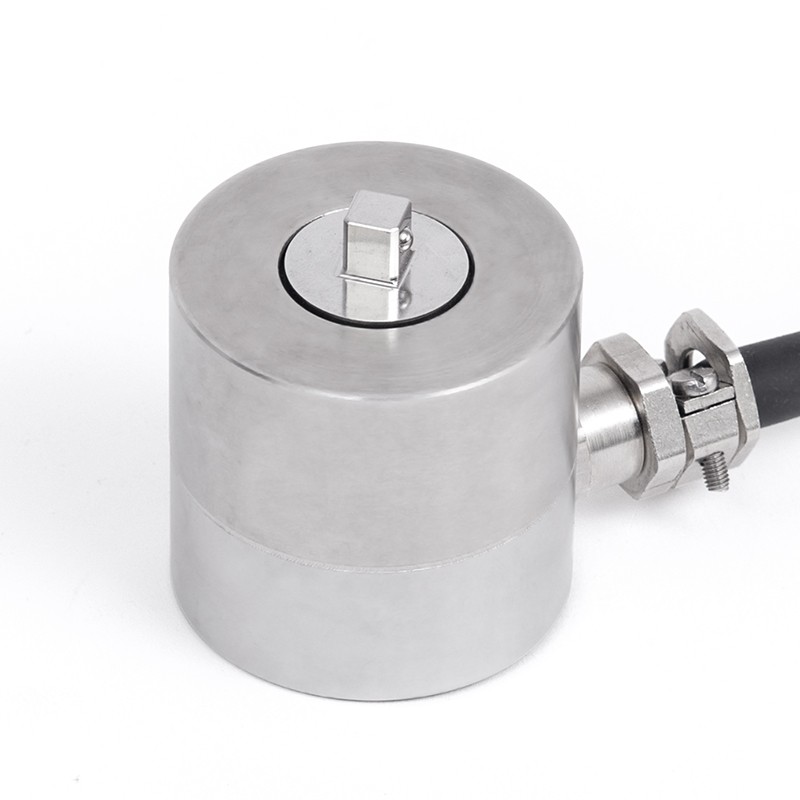

Mark-10 - Series MR55 Square Drive Torque Sensors

Starting at $1,375.00

This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries.
Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications.
Ranges available up to 5,000 lbFin (550 Nm).
Requires a Mark-10 indicator, available separately.

Item No.	Capacity	Our Price
MR55-20	20 lbF In	$1,375.00
MR55-50	50 lbF In	$1,375.00
MR55-100	100 lbF In	$1,375.00
MR55-200	200 lbF In	$1,375.00
MR55-400	400 lbF In	$1,375.00
MR55-1000	1000 lbF In	$1,375.00
MR55-5000	5000 lbF In	$1,375.00

Downloads:

Rugged cylindrical design
Square drives on each end
Member of the Plug & Test^® family of interchangeable sensors and indicators
Stainless steel and aluminum construction
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years
